Shin-Etsu Silicone Rubber for Molding Selection Guide

High Strength Silicone Rubber (Conforms to Food Standards)

  • Excellent rubber strength.
  • Suitable for healthcare applications.
    Compliant with food-related standards.
  • Excellent moldability.
  • Hardness range from 40 to 70 (Durometer A).

Product Information

Key Points

Use For molding
Molding method Extrusion molding, press molding, addition curing
Features High strength, ISO 10993-1, USP Class VI, FDA
Industries Transport, healthcare, food, electrical and electronics, copiers, general industry

Application

  • Components that require rubber strength due to stress, etc.

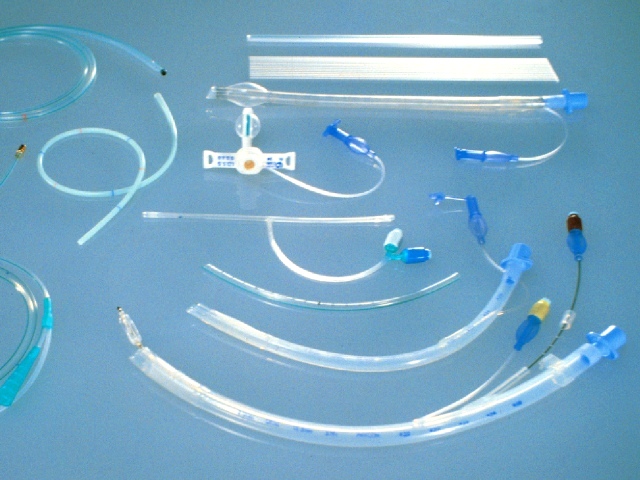

  • Materials that require compliance with standards, such as rubber tubes for healthcare use
  • Automobiles, electric wires, cables, and other general industrial materials

Expected Results

  • Excellent rubber strength → Suitable for applications where stress is applied or where strength is required for rubber.
  • Compliant with USP Class VI and other standards → Can be used for applications requiring compliance with standards
Parameter\Product name  KE-5441-U   KE-5451-U   KE-5461-U   KE-5471-U
Appearance (color) Milky white Milky white Milky white Milky white
Appearance (transparency) Translucent Translucent Translucent Translucent
Williams plasticity (10 min after remix) 177 187 222 305
Standard adding
quantity phr
Curing agent name C-25A/B C-25A/B C-25A/B C-25A/B
Parts 0.5/2.0 0.5/2.0 0.5/2.0 0.5/2.0
Test piece
standard curing conditions
Primary cure 120℃×10m 120℃×10m 120℃×10m 120℃×10m
Post cure 200℃×4h 200℃×4h 200℃×4h 200℃×4h
Hardness (Shore A) 41 52 59 67
Density at 23℃ (g/cm3) 1.13 1.13 1.16 1.19
Tensile strength (MPa) 10.4 9.8 10.1 9.9
Elongation at break (%) 950 640 610 530
Tear strength Crescent piece (kN/m) 34 48 51 52
Compression set 180℃×22h (%) 37 19 20 21

(Not specified values)

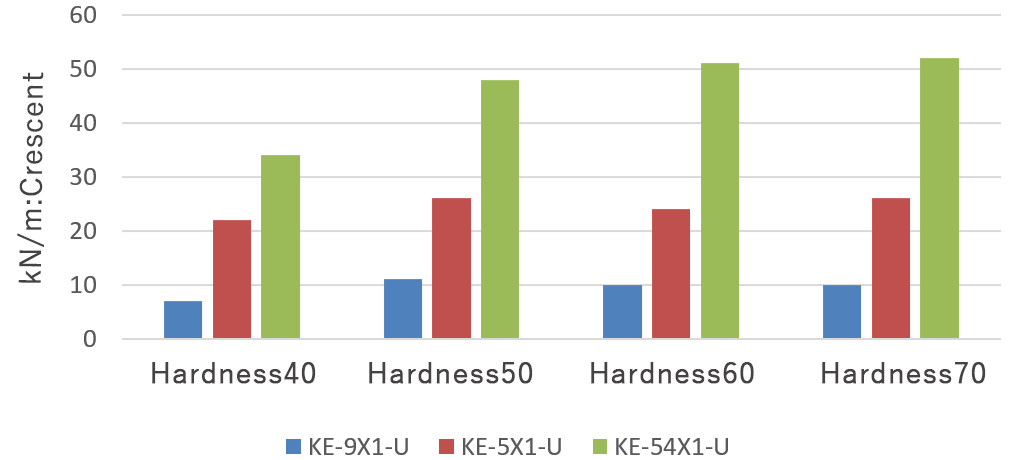

Comparison of Tear Strength with Our General Products

* Regardless of hardness, the strength is superior to our standard products.
