Vibration Control HCR | Vibration Control Silicone Rubber (High Decrement)
- Excellent vibration-proofing properties over a wide temperature range.
- High loss factor, high decrement type.
- Hardness range from 30 to 70 (Durometer A)
Product Information
Key Points
| Use | For molding |
|---|---|
| Molding method | Press molding, peroxide curing |
| Features | Vibration proofing (high decrement), fatigue durability |
| Industry | Automobiles, transport, railways, general industry |
Application
FF joint boots such as muffler hangers for automobiles, engine mounts, suspension bushes, etc., and other parts that absorb and block the vibration of engines transmitted to the car body.
Expected Results
High loss modulus tan δ ⇒Can be used over a wide temperature range, which is difficult with organic rubbers.
| Parameter＼Product name | KE-5530-U | KE-5540-U | KE-5550-U | KE-5560-U | KE-5570-U | |
|---|---|---|---|---|---|---|
| Appearance | Pale yellow | Pale yellow | Pale yellow | Gray | Gray | |
| Williams plasticity (10 min after remix) | 255 | 296 | 365 | 409 | 418 | |
| Standard adding quantity phr | Curing agent name | C-8/2.0 | C-8/2.0 | C-8/2.0 | C-8/2.0 | C-8/2.0 |
| Test piece standard curing conditions |
Primary cure Post cure |
165℃×10m 200℃×4h |
165℃×10m 200℃×4h |
165℃×10m 200℃×4h |
165℃×10m 200℃×4h |
165℃×10m 200℃×4h |
| Hardness (Durometer A) | 35 | 42 | 52 | 63 | 72 | |
| Density at 23℃ (g/cm3) | 1.17 | 1.23 | 1.26 | 1.45 | 1.42 | |
| Tensile strength (MPa) | 8.8 | 9.6 | 9.2 | 6.4 | 5.5 | |
| Elongation at break (%) | 870 | 800 | 750 | 510 | 330 | |
| Tear strength Crescent piece (kN/m) | 20 | 34 | 38 | 26 | 18 | |
| Modulus of resilience (%) | 32 | 26 | 23 | 23 | 22 | |
| Compression set 180℃×22h (％) | 10 | 13 | 14 | 18 | 30 | |
(Not specified values)
Data of Vibration Proofing
| Viscoelasticity (Temperature: roomtemperature/frequency: 30Hz/Displacement: 400μm) |
KE-55X0-U (Low dynamic magnification) |
Reference:KE-551-U (Conventional product) |
|
|---|---|---|---|
| Elastic modulus E’ (MPa) | 5.67 | 5.10 | |
| Loss modulus tanδ | 0.39 | 0.11 | |
| Dynamic magnification | E’ at 0.1Hz, 400μm (MPa) | 4.07 | 4.48 |
| E’ at 100Hz, 50μm (MPa) | 11.41 | 6.36 | |
| Dynamic magnification:E’100/E’0.1 | 2.80 | 1.42 | |

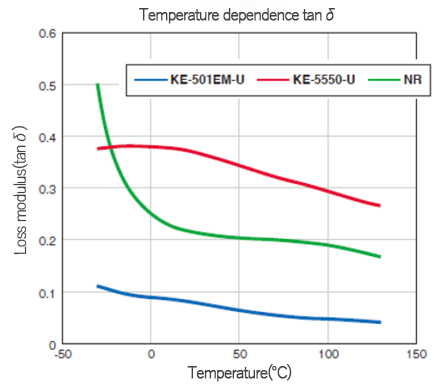

・Low temperature dependency from low to high temperatures.
