Shin-Etsu Silicone Rubber for Molding Selection Guide

High Heat Resistant Silicone Rubber

  • It is resistant to deterioration even at 300℃ and has excellent high-temperature properties.
  • It is available in a brown and an ivory that can be colored.
  • Hardness range from 40 to 80 (Durometer A).

Product Information

Key Points

Use For molding
Molding method Extrusion molding, press molding, peroxide curing
Features Heat resistant
Industries Automotive, transport, wires, tubes, general industry

Application

  • Hoses, tubes, electric wires, gaskets, and other components that require high heat resistance

Expected Results

  • Excellent heat resistance ⇒Can be used in high temperature environments where organic rubber is difficult to use.
  • Changes in physical properties: Little change in physical properties even in high temperature environments of 300℃, and resistant to deterioration.
  • Excellent moldability ⇒ Suitable for compression molding and extrusion molding.
  • Colorable ⇒ Heat-resistant grades, which generally tend to be dark and rich in color, can be colored ivory.
Parameter\Product name High heat resistant products Colorable high heat resistant product
X-30-3888-U X-30-4574-U
Appearance Dark brown Ivory
Williams plasticity (10 min after remix) 264 250
Standard adding quantity phr Curing agent name C-23N/1.3 C-23N/1.3
Test piece
standard curing conditions
Primary cure
Post cure
120℃×10m
150℃×1h
120℃×10m
150℃×1h
Hardness (Shore A) 55 57
Density at 23℃ (g/cm3) 1.19 1.15
Tensile strength (MPa) 9.1 8.5
Elongation at break (%) 360 310
Heat resistant
(300℃×72h)
Hardness change ±0 +2
Tensile strength change (%) 66 62
Retention of elongation at break (%) 85 84
Hardness lineup 40~80 40~80

(Not specified values)

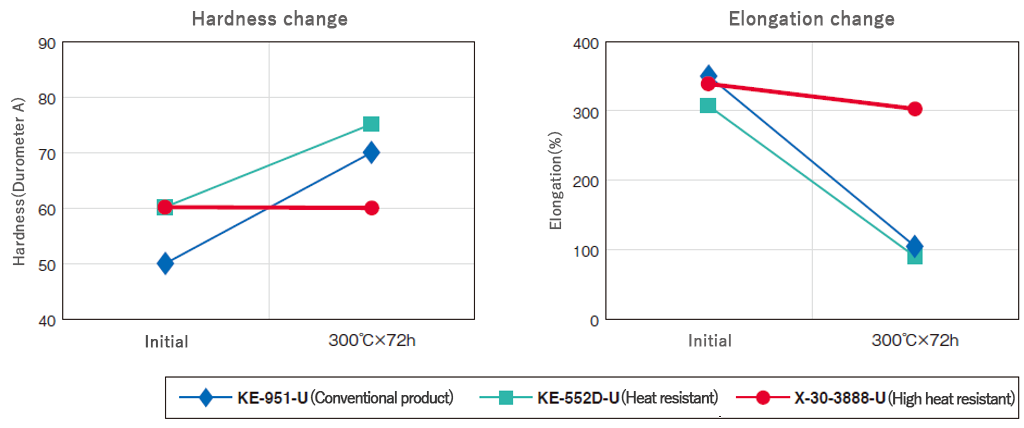

Change in Physical Properties of Silicone Rubber at High Temperature

・High heat resistant silicone rubber has little change in hardness, elongation, and the like even in a high temperature range of 300 degrees.
