Oil-phase Thickeners
The KSG series is a gel formed by swelling silicone crosslinked compounds in silicone fluids and other oils and fats.
The crosslinking portion is the type of hydrophilic group (Emulsifying silicone gels)and the type of silicone chain (Silicone gels ) are both functional materials that act as oil-phase thickeners and can impart structural viscosity.
We offer a lineup of gels based on various silicone fluids, allowing you to select a gel that is compatible with your oil. We also provide a wide variety of textures.
Emulsifying silicone gels can be used as surfactants to form W/O emulsions.

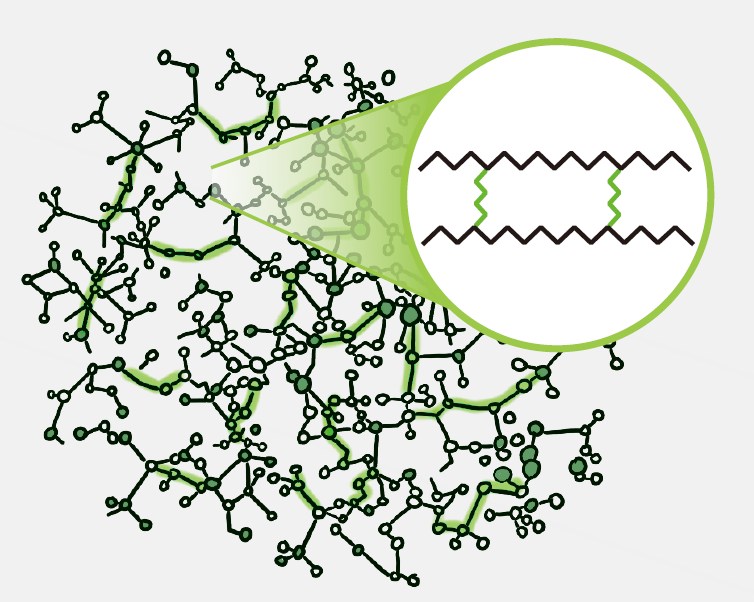

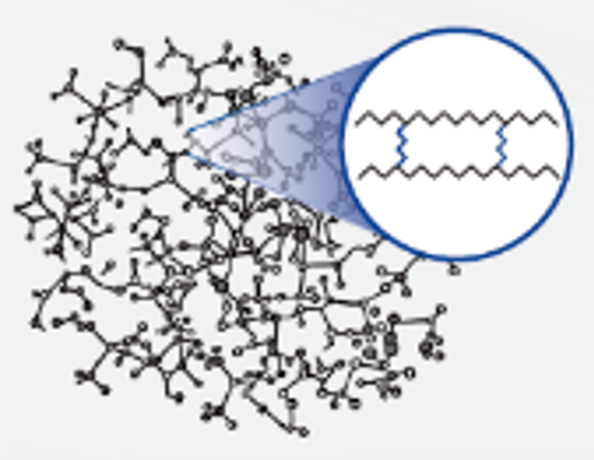

KSG Series Molecular Imaging
Silicone Gels
Emulsifying Silicone Gels
Cross-linked silicone gels possess the aforementioned entangled molecular structure, imparting structural viscosity by swelling in silicone fluids.
Product Lineup and Molecular Structure Model of Silicone gels
Composed solely of silicone: Standard Type, Alkyl branched type with alkyl chains unrelated to cross-linking, and the Silicone / Alkyl branched type with both silicone and alkyl branches. We offer a lineup of products swollen with compatible silicone fluids for each type.
| Standard type | Alkyl branched type | Silicone / Alkyl branched type | |||
|---|---|---|---|---|---|
| Grade | Base oil | Grade | Base oil | Grade | Base oil |
|
Highly swellable transparent gel |
KF-995 Cyclopentasiloxane |
KSG-41A | Mineral oil | KSG-042Z | Isododecane |
|
Silky texture |
KF-96A-6cs Dimethicone |
KSG-42A | Isododecane | KSG-045Z |
KF-995 Cyclopentasiloxane |
|
Powdery texture |
Triethyl hexanoate | KSG-048Z |
KF-96L-2cs Dimethicone |
||
|
High affinity with various silicone fluids KSG-18A(*) |
KF-56A Phenyl-modified silicone |
KSG-44 | Squalane | ||
| Molecular Structure Model of Cross-linked Material | |||||
 |
 |
 |
|||
| Features | |||||
| Useful in formulations primarily containing silicone fluids | Useful in formulations primarily composed of ester oils and hydrocarbon oils | Useful in formulations that combine silicone fluids, ester oil, hydrocarbon oil, etc. | |||
(*)The crosslinking agent for KSG-18A is phenyl-modified silicone.
Product Lineup and Molecular Structure Models of Emulsifying silicone gels
Crosslinked emulsifying silicone gels possess both hydrophobic and hydrophilic groups, enabling them to function as W/O emulsifiers and maintain stable emulsion particles. Furthermore, the crosslinked material swells within the silicone fluids, imparting structural viscosity, thereby yielding W/O cosmetic formulations with excellent stability.
The hydrophobic portion comes in three types: a standard type composed solely of silicone chains, a type with alkyl chains unrelated to crosslinking, and a type with two types of branched chains (silicone and alkyl). Each swells in silicone fluids with which it is compatible.
The hydrophilic portion consists of two types: Polyether and Polyglycerin. As a three-dimensional crosslinked compound, it provides a non-sticky feel. In particular, polyglycerin modified silicone has high water retention and imparts a soft, moisturized feel.
| Standard type | Alkyl branched type | Silicone / Alkyl branched type | ||||||
|---|---|---|---|---|---|---|---|---|
| Polyether modified | Polyglycerin modified | Base oil | Polyether modified | Polyglycerin modified | Base oil | Polyether modified | Polyglycerin modified | Base oil |
| KSG-210 | KSG-710 | KF-96A-6cs Dimethicone | KSG-310 | KSG-810 | Mineral Oil | KSG-320Z | KSG-820Z | Isododecane |
| KSG-240 |
KF-995 Cyclopentasiloxane |
KSG-320 | KSG-820 | Isododecane | KSG-350Z | KSG-850Z |
KF-995 Cyclopentasiloxane |
|
| KSG-270 |
KF-56A Phenyl-modified silicone |
KSG-330 | KSG-830 | Triethylhexanoin | KSG-360Z |
KF-96A-6cs Dimethicone |
||
| KSG-340 | KSG-840 | Squalane | KSG-380Z |
KF-96L-2cs Dimethicone |
||||
| Molecular Structure Model of Cross-linked Material | ||||||||
 |
 |
 |
||||||
| Features | ||||||||
| Useful in formulations primarily containing silicone fluids | Useful for pharmaceutical manufacturing primarily using ester oils and hydrocarbon oils | Useful in formulations that combine silicone fluids, ester oil, hydrocarbon oil, etc. | ||||||
KSG-850Z
KSG-850Z
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel.
- It can be used to create unique W/Si and W/O creams.
KSG-350Z
KSG-350Z
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-240
KSG-240
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-840
KSG-840
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel.
- It can be used to create unique W/Si and W/O creams.
KSG-330
KSG-330
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-320
KSG-320
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-310
KSG-310
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-360Z
KSG-360Z
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-830
KSG-830
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel..
- It can be used to create unique W/Si and W/O creams.
KSG-810
KSG-810
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel. It can be used to create unique W/Si and W/O creams.
KSG-710
KSG-710
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel.
- It can be used to create unique W/Si and W/O creams.
KSG-340
KSG-340
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-270
KSG-270
- This emulsifier has a smooth texture and can be used to create unique W/Si and W/O creams.
The base oil, phenyl-modified silicone, is highly compatible with silicone fluid, hydrocarbon oil, UV absorbers, and other ingredients, allowing for a wide range of oil combinations.
KSG-1510
KSG-1510
- Due to its three-dimensional cross-linked structure, it imparts a smooth, silky feel and creates a matte effect.
- It has excellent swelling properties in silicone fluid, improving the stability of cosmetic products.
KSG-1610
KSG-1610
- Due to its three-dimensional cross-linked structure, it imparts a smooth, silky feel and creates a matte effect.
- It has excellent swelling properties in silicone fluid, improving the stability of cosmetic products.
KSG-790
KSG-790
- Silicone gel active agent that enables the design of W/O emulsion formulations with high stability in a wide range of oil agents.
KSG-45
KSG-45
A silicone elastomer gel with a smooth texture that blends well with the skin, swollen with a plant-derived oil agent.
KSG-042Z
KSG-042Z
- The use of isododecane as the base oil and its three-dimensional cross-linked structure of fine particles imparts a smooth, silky feel and creates a matte effect.
- It has excellent swelling properties for both silicone fluid and hydrocarbon oil, improving the stability of cosmetic products.
KSG-16
KSG-16
- Due to its three-dimensional cross-linked structure, this fine particle imparts a smooth, silky feel and creates a matte effect.
- It has excellent swelling properties in silicone fluid, improving the stability of cosmetic products.
KSG-18A
KSG-18A
- A silicone gel crosslinked with phenyl-modified silicone that imparts a smooth, emollient feel and a matte effect.
- It has excellent swelling properties with various oils and improves the stability of cosmetic products.
KSG-19
KSG-19
- Due to its three-dimensional cross-linked structure, it imparts a smooth, silky powdery feel and creates a matte effect.
- It has excellent swelling properties in silicone fluid, improving the stability of cosmetic products.
KSG-016F
KSG-016F
The fine particles have a three-dimensional cross-linked structure, giving them a smooth, powdery feel and a matte finish.
KSG-41A
KSG-41A
- Mineral oil is used as the base oil.
- The fine particles have a three-dimensional cross-linked structure, giving a smooth, silky feel and a matte finish.
- It has excellent swelling properties with hydrocarbon oils, improving the stability of cosmetic products.
KSG-42A
KSG-42A
- The use of isododecane as the base oil and its three-dimensional cross-linked structure of fine particles imparts a smooth, silky feel and creates a matte effect.
- It has excellent swelling properties for hydrocarbon oils, improving the stability of cosmetic products.
KSG-43
KSG-43
- The base oil is triethylhexanoin.
- Its fine particles have a three-dimensional cross-linked structure, giving it a smooth, silky feel and a matte finish.
- It has excellent swelling properties with hydrocarbon oils, improving the stability of cosmetic products.
KSG-44
KSG-44
- Squalane is used as the base oil.
- Its fine particles have a three-dimensional cross-linked structure, giving it a smooth, silky feel and a matte finish.
- It has excellent swelling properties with hydrocarbon oils, improving the stability of cosmetic products.
KSG-15
KSG-15
- Highly swellable transparent gel Due to its fine particle size and three-dimensional cross-linked structure, it imparts a smooth, silky feel and creates a matte effect. .
- It has excellent swelling properties in silicone fluid, improving the stability of cosmetic formulations..
KSG-045Z
KSG-045Z
- KF-995 (cyclopentasiloxane) is used as the base oil.
- Its fine particles with a three-dimensional cross-linked structure impart a smooth, silky feel and create a matte effect.
- It has excellent swelling properties for both silicone fluid and hydrocarbon oil, improving the stability of cosmetic products.
KSG-048Z
KSG-048Z
- KF-96A-2CS (volatile dimethicone) is used as the base oil.
- Due to its three-dimensional cross-linked structure and fine particles, it imparts a smooth, silky feel and creates a matte effect.
- It has excellent swelling properties for both silicone fluid and hydrocarbon oil, improving the stability of cosmetic products.
KSG-320Z
KSG-320Z
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-380Z
KSG-380Z
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
KSG-820
KSG-820
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel..
- It can be used to create unique W/Si and W/O creams.
KSG-820Z
KSG-820Z
- This emulsifier has high water retention and is easily absorbed by the skin, giving it a soft, moist feel.
- It can be used to create unique W/Si and W/O creams.
KSG-210
KSG-210
A smooth-feeling emulsifier that can be used to create unique W/Si and W/O creams.
