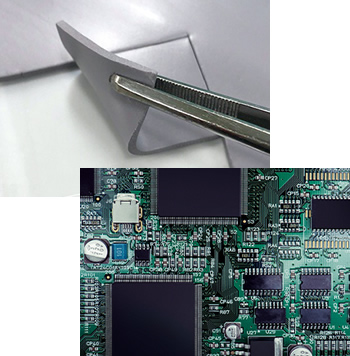

TC-UP8
TC-UP8 has good compressibility and higher thermal conductivity than our conventional products.
| Parameter | Test Method | TC-UP8 | |
|---|---|---|---|
Color |
- | Gray | |
Structure* |
- | Single layer | |
Thickness mm |
- | 0.5 to 5.0 | |
Thermal conductivity W/m·K |
Hotdisk (ISO22007-2) | 8.0 | |
Hardness |
Asker C | 15 | |
| Shore 00 | 25 | ||
Thermal resistance cm2·K/W@1.0 mm |
50°C/100 psi ASTM D5470 | 0.28 | |
Breakdown voltage kV |
In air@1 mmt | 7 | |
Volume resistivity Ω·cm |
JIS K 6249 | 1.3 × 1011 | |
Dielectric constant (ε) |
50 Hz | JIS K 6249 | 11 |
| 100 Hz | 12 | ||
| 1 MHz | 11 | ||
Dielectric dissipation factor (tan δ) |
50 Hz | JIS K 6249 | 1.3 × 10‒1 |
| 100 Hz | 3.6 × 10‒2 | ||
| 1 MHz | 1.4 × 10‒2 | ||
Low molecular Siloxane content |
Acetone extraction | < 30 | |
Flame retardance |
UL94 | V-0 equivalent | |
Density at 23℃ g/cm3 |
JIS K 6249 | 3.1 | |
Continuous use temp. °C |
- | -40 to 180 | |
* For improving handling, we can prepare the product;
-TL which has less tackiness in one side by special treatment

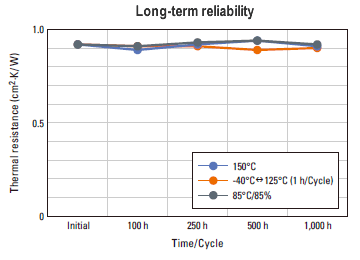

| Initial | 100 h | 250 h | 500 h | 1,000 h | |
|---|---|---|---|---|---|
150°C |
0.92 | 0.89 | 0.92 | 0.94 | 0.91 |
-40°C↔125°C |
0.92 | 0.91 | 0.91 | 0.89 | 0.90 |
85°C/85% |
0.92 | 0.91 | 0.93 | 0.94 | 0.92 |
