X-40-2761
Flexural Resistant Silicone Oligomer Containing Acrylic Groups
| Required Performance | Weather ResistanceFlexibility and Crack ResistanceFlex Resistance |
|---|---|
| Features and Applications | Developmental GoodsFor Acrylic Resins |
- Acrylic equivalent 330g/mol
- This product imparts flexural resistance to acrylic resins.
- This product has excellent compatibility with acrylic resins and various photoinitiators.
- This product is applicable to UV/EB curing systems.
Product Information
X-40-2761 can be used as a resin (film) itself or as a modifier for other UV/EB curing resins.
- Used as a resin itself
-
- Flexural reststance
- High hardness

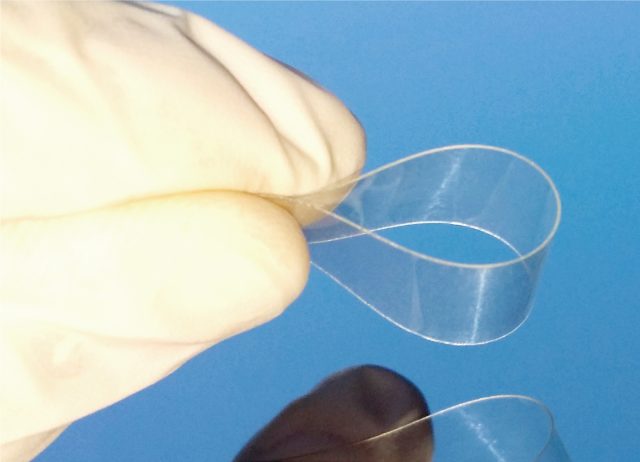

Excellent Flexural Resistance
Physical Properties of Cured Film
| Pencil hardness: Thickness 0.6mm | 4H |
|---|---|
| Flex resistance Thickness 0.2 mm (φ) | 2mm |
(Not specified values)
- Used as a resin modifier
-
- Adding crack resistance and slip property (pleasant touch)
- Excellent compatibility with the following organic solvents, acrylates, and various photoinitiators
- Organic solvents:
- PGM, IPA, cyclopentanol, ethanol, methyl acetate, butyl acetate, toluene, xylene, etc.
- Acrylate:
- DPHA, TMPTA, HDDA, A-TMM-3L, etc.

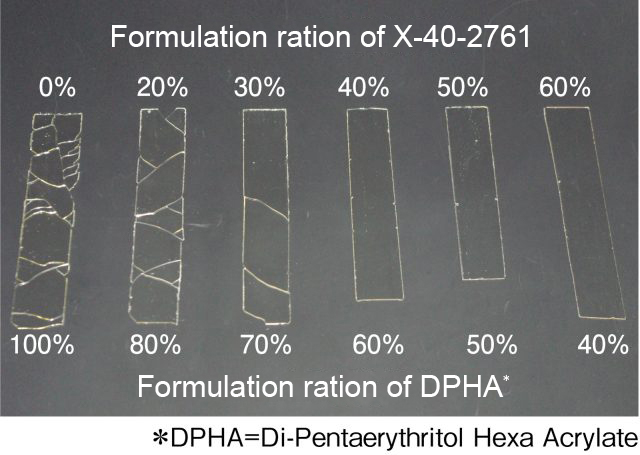

Comparison of Physical Properties by Mixing with DPHA (0.6 mm film)
| Composition ratio X-40-2761/DPHA (wt%) | 0/100 | 20/80 | 30/70 | 40/60 | 50/50 | 60/40 | |
|---|---|---|---|---|---|---|---|
| Hardness thickness 0.6mm | Pencil Hardness | 9H | 9H | 9H | 5H | 4H | 3H |
| Shore D | 96 | 90 | 87 | 85 | 83 | 80 | |
(Not specified values)
- UV curing conditions:
- High-pressure mercury lamp 600mJ/cm2, nitrogen atmosphere, 1Pass
- Photoinitiator:
- Add 5 wt% of Darocur 1173 to solid content
| Applicable solvent type | Organic solvent type |
|---|---|
| Applicable resin | Acrylic |
| Solvent type | Solvent-free |
| Usage | Main component, Additive |
| Curing method | UV curing |
| Hardness of the coating | - |
| Appearance | Pale yellow transparent liquid |
| Active ingredient (%) | 100 |
| Viscosity at 25℃ | 500mm2/s |
| Specific gravity at 25℃ | 1.10 |
| Refractive index at 25°C | 1.45 |
| Solvent | - |
| Standard curing conditions | Estimated light intensity 600 mJ/cm2 under N2 atmosphere |
| UN Number | N/A |
| Packaging | 1kg |
(Not specified values)
