Silicone Resins and Oligomers

Silicone resins and oligomers are resins composed of siloxane bonds (Si-O-Si) with high binding energy, and their films have various properties such as heat resistance, weather resistance, electrical insulation, and water repellency.

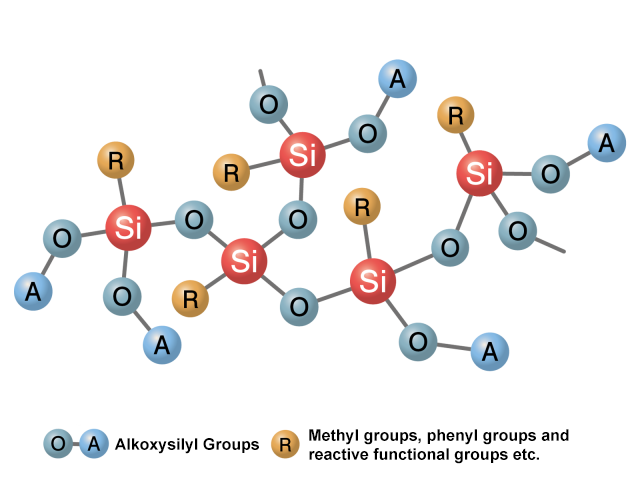

Structures

Silicone resins and oligomers are resins composed of three-dimensional siloxane bonds (Si-O-Si) with high binding energy, which form a hardened film when exposed to heat or moisture.



Features of Siloxane Bond

Silicone resins and oligomers with siloxane bonds as their main backbone have high binding energy, and therefore have excellent properties such as heat resistance, weather resistance, and electrical insulation.



Main Backbone : Siloxane bond

Siloxane bond

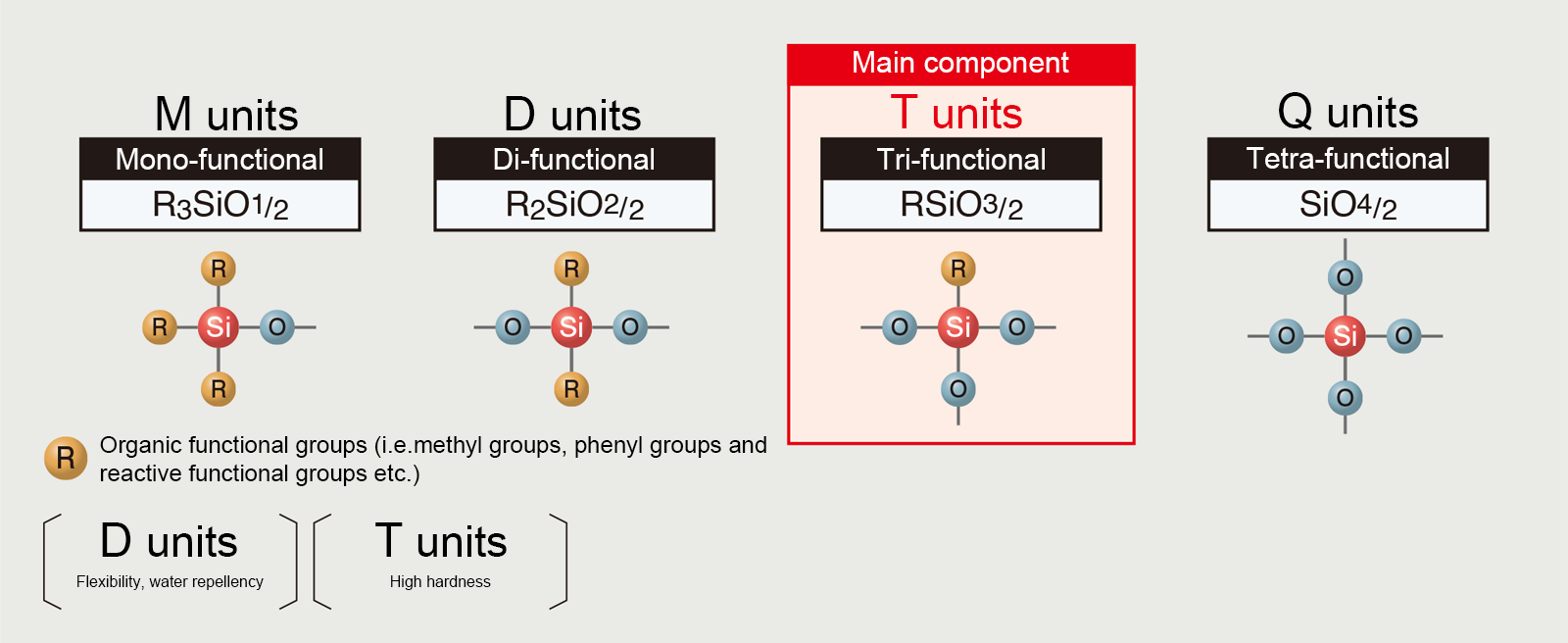

All silicone products are composed of the following four basic units, but silicone resins and oligomers are mainly composed of Tri-functional (T units) and have three-dimensional siloxane bonds. Products with Di-functional units (D units) as part of the backbone form films with excellent flexibility and water repellency.



Compositional Units of Silicone

Silicone Constituent Units



Cure Mechanism

Most products are condensation cure type. Silicone resins have silanol groups (Si-OH) as reactive functional groups, and cure by condensation reaction upon heating. In silicone oligomers, the reactive functional group is an alkoxy group (Si-OR), which is hydrolyzed by moisture, causing a condensation reaction that cures the product.



Condensation Cure Type

Dehydration condensation curing type Curing mechanism



In addition, we also have some addition cure type products in our lineup. The benefit of the addition cure type is that it has less shrinkage during curing, so it is used for molded products that require dimensional stability and thick film coating applications.



Addition Cure Type

Advantage: Low cure shrinkage.



Representative Products
One-component Type:
X-40-2756
Two-component Type:
X-40-2667A/X-40-2667B
Cure Mechanism

Curing Mechanism Additive Curing Type



How to Use

Silicone resin oligomers can be used in two ways: as a “Main component” that forms a cured film on its own, and as a “Resin modifiers” that modifies other organic resins.

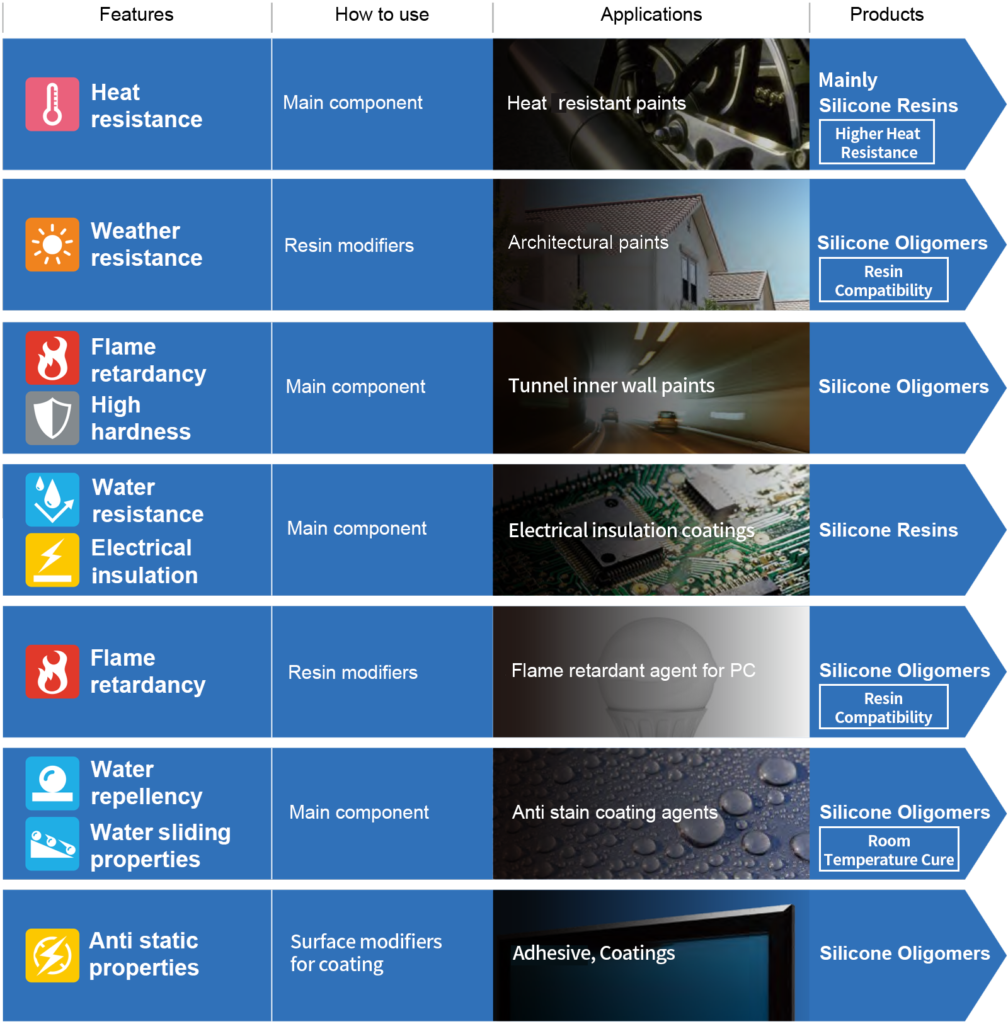

Features and Application Examples

Silicone resins and oligomers have excellent heat resistance and weather resistance, and are used in the following applications.
In addition, we have recently been focusing on the development of product groups with unique characteristics such as antistatic properties, oil repellency, alkali resistance, and flex resistance.

  • Advanced Search

  • Required Performance

X-41-1610

X-41-1610

  • This product is TX(toluene, xylene)-free type and uses PGMAC solvent.
  • This product has the heat resistance of silicone resin and corrosion resistance and adhesion of epoxy resin.
  • This product has been used as binder for coating agents.

X-40-9309A

X-40-9309A

  • This product contains UV absorber to prevent UV degradation of base material.
  • This product cures at room temperature.
  • One-component type (contains curing catalyst)
  • This product forms high hardness coating film.

X-40-2761

X-40-2761

  • Acrylic equivalent 330g/mol
  • This product imparts flexural resistance to acrylic resins.
  • This product has excellent compatibility with acrylic resins and various photoinitiators.
  • This product is applicable to UV/EB curing systems.

X-40-2669

X-40-2669

X-40-2669

  • Relatively low molecular weight and excellent compatibility with epoxy resins
  • Good leveling and wettability with linear siloxane structure
  • Low viscosity and effective as a reactive diluent

X-40-2756

X-40-2756

  • Addition cure type
  • One-component product containing curing catalyst
  • Low curing shrinkage enables molded products and thick films
  • Good adhesion to glass substrates

X-40-9301

X-40-9301

  • Alkali resistance
  • Water resistance

X-40-9300

X-40-9300

  • Very high reactivity of alkoxy group and rapid curing
  • Alkali resistance
  • Water resistance

X-48-1030

X-48-1030

  • TX (toluene, xylene)-free type; uses PGMAC solvent
  • Excellent heat resistance
  • High hardness
  • Proven mainly as a binder for heat-resistant paints

X-48-1800

X-48-1800

  • This product can be used by simply cold-blend*.
  • Applicable organic resins are silicone-modified acrylic polymers/polyesters/alkyds/weak solvent acrylic resins/NAD.
  • This product improves weather resistance, heat resistance, anti-marking pen fouling properties, acid/alkali resistance, etc..
  • Recommended additive amount is 10~50 parts per 100 parts resin solid content.

* Cold blend: A method of blending by simply mixing without heating

X-88-1007

X-88-1007

  • Good adhesion to hard-to-bond base materials such as SUS and acrylic
  • Good crack resistance and water repellency

X-48-1801

X-48-1801

  • It can be used in combination with isocyanate curing agents.
  • This product can be used by simply cold-blend*.
  • Recommended additive amount is 3% to 20% (NCO equivalent) of catalyst.
  • This product improves weather resistance and oil repellency.
  • Applicable polyols are silicone-modified acrylic/polyesters/alkyd polyols.

* Cold blend: A method of blending by simply mixing without heating

KR-4000A

KR-4000A

  • This product can be added to silicone coatings.
  • This product imparts water repellency and water sliding properties.
  • This product maintains anti-fouling property even after wiping-up application.

X-88-1004

X-88-1004

  • Good adhesion to hard-to-bond base materials such as SUS and acrylic
  • High hardness and good scratch resistance

X-48-1600

X-48-1600

  • This product has high hardness and flexural resistance.
  • Since this product cures by de-ethanol reaction, it is environmentally friendly.

X-48-1500

X-48-1500

  • This product has high hardness and flexural resistance.
  • Rapid curing

KR-251

KR-251

  • Ultra high molecular weight
  • Even at room temperature, when the solvent volatilizes, a lacquer film is formed.
  • Heating further forms a film with excellent heat resistance and chemical resistance
  • This product has been mainly used as coatings with electrical insulation and water resistance.

X-40-2728

X-40-2728

  • Relatively low molecular weight and excellent compatibility with epoxy resins
  • This product has a cyclic siloxane backbone and low cure shrinkage.
  • Good crack resistance due to bifunctional

X-40-9312

X-40-9312

  • High hardness and crack resistance
  • Excellent resistance to yellowing and cracking after

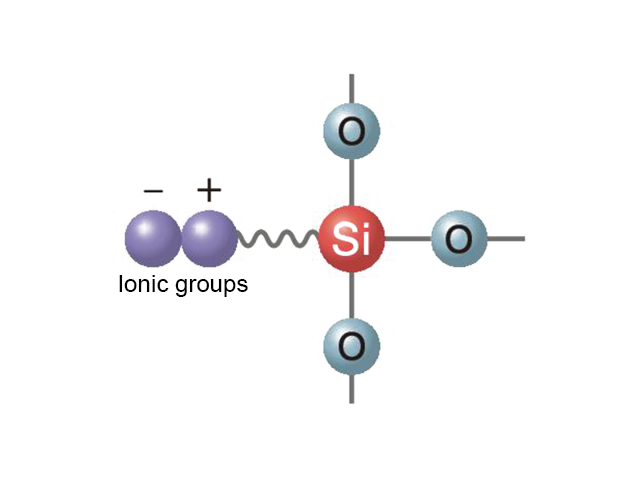

X-40-2450

X-40-2450

  • Easy surface migration when added to resins
  • Provides antistatic performance with a small amount of addition
  • This product can impart peeling, slipping and water sliding properties.

KR-470

KR-470

KR-470

  • Relatively low molecular weight and excellent compatibility with epoxy resin
  • Low shrinkage during curing due to cyclic siloxane structure

X-48-1501

X-48-1501

  • Developed products
  • Combines high hardness, bending resistance, heat cracking resistance, and impact resistance

KR-4000G

KR-4000G

  • One-component type
  • High gloss
  • Excellent water repellency and water sliding properties
  • Exhibits antifouling performance even when wiped off.

X-40-2678

X-40-2678

  • Relatively low molecular weight and excellent compatibility with epoxy resin
  • Less shrinkage during curing due to cyclic siloxane structure
  • Good crack resistance due to di-functionality

KR-300

KR-300

  • This product forms cured film with excellent heat resistance.
  • High hardness
  • This product has been mainly used as a binder for heat-resistant paints.

KR-517

KR-517

  • Alkoxy groups are methoxy groups and ethoxy groups.
  • Epoxy equivalent 830g/mol

X-24-9590

X-24-9590

  • Alkoxy groups are methoxy groups.
  • Epoxy equivalent 590g/mol

KR-516

KR-516

  • Alkoxy groups are methoxy groups.
  • The organic functional groups have methyl groups in addition to the epoxy groups.
  • Epoxy equivalent 280g / mol

KR-518

KR-518

  • Alkoxy groups are methoxy groups and ethoxy groups.
  • Mercapto equivalent 800g/mol

KR-519

KR-519

  • Alkoxy groups are methoxy groups.
  • Organic substituent has both methyl group as well as mercapto group
  • Mercapto equivalent 450g/mol

KR-513

KR-513

  • Alkoxy groups are methoxy groups.
  • Acrylic equivalent 210g/mol
  • Applicable to UV/EB curing system
  • Lower volatility than KBM-5103 (monomer type)

X-40-9296

X-40-9296

  • Reactive functional groups are methacrylic groups.
  • Methacryl equivalent 230g/mol
  • Applicable to UV/EB curing system

KR-511

KR-511

  • Reactive functional groups are Vinyl groups.
  • Vinyl equivalent 530g/mol
  • Flame retardant for Polycarbonate

KR-282

KR-282

  • This product forms cured film with excellent heat resistance.
  • Minimal cracking and peeling at high temperatures, good balance of performance
  • This product has been mainly used as a binder for heat-resistant paints.

KR-311

KR-311

  • Standard product of methyl/phenyl type
  • This product forms cured films with excellent heat resistance.
  • Good compatibility with organic resins
  • This product has been mainly used as a binder for heat-resistant paints.

KR-271

KR-271

  • This product forms cured film with excellent heat resistance and electrical insulation.
  • Flexibility and less cracking and peeling at high temperatures
  • This product has been mainly used as a binder for coatings and paints.

KR-255

KR-255

  • Even at room temperature, when the solvent volatilizes, a lacquer film is formed.
  • Heating further forms a film with excellent heat resistance and chemical resistance
  • This product has been mainly used as coatings with electrical insulation and water resistance.

KR-2710

KR-2710

  • Flame retardant agents for polycarbonate
  • Good transparency

KR-212

KR-212

  • Modifier for organic resins
  • More compatibility and flexibility than KR-211
  • Adding heat resistance and weather resistance
  • This product has been mainly used as paint applications.

KR-211

KR-211

  • Modifier of organic resins
  • Adding heat resistance and weather resistance are possible.
  • This product has been mainly used as paint applications.

X-40-2406M

X-40-2406M

  • Excellent heat shock resistance
  • Heat resistance and releasability
  • This product has been mainly used as coating and paint applications.

KR-242A

KR-242A

  • This product forms high hardness film.
  • Less smoke generation when heated
  • This product has been mainly used as binders of inorganic materials (i.e. mica).

KR-220LP

KR-220LP

  • Solid (100% silicone content) and powdered
  • KR-220L further ground and powdered
  • Less smoke generation

X-88-2003A

X-88-2003A

  • This product has high hardness and crack resistance. Excellent crack resistance, especially in high-temperature environments.
  • Excellent antifouling properties (water repellency, water sliding properties, and anti-marking pen fouling properties)
  • Fast curing
  • One-component type

X-48-5030

X-48-5030

  • UV curable, good curability under air
  • Low viscosity, excellent scratch resistance and low warpage
  • Compatible with coating methods that require low viscosity, such as spray coating

KR-220L

KR-220L

  • Solid (100% silicone content) in flake form
  • This product has been used as resistor paints, binders for sintered metal powder, etc.
  • Less smoke generation

KR-400N

KR-400N

  • High hardness
  • KR-400N is made from KR-400 without curing catalysis.

KR-5234

KR-5234

  • This product has the heat resistance of silicone resin and the chemical resistance, flex resistance, and high gloss of polyester resin.
  • Faster curing speed compared to KR-5230

KR-5235

KR-5235

  • This product has the heat resistance of silicone resin and the chemical resistance, bending resistance, and high gloss of polyester resin.
  • Owing to the non-stich property, this product has been used as heat resistant paints for kitchen area.

KC-89S

KC-89S

  • This product contains only T units.
  • This product forms high hardness cured film.
  • This product has been used as binder for coating agents.

KR-515

KR-515

  • Higher molecular weight than KC-89S
  • Contains only T units
  • This product has been used as binder for coating agents and modifier for organic resins.

KR-500

KR-500

  • Higher molecular weight than KR-515
  • Made up of T units only
  • Standard product in methyl type
  • This product has been used as binder for coating agents and modifier for organic resins.

X-40-9225

X-40-9225

  • Higher molecular weight than KR-500
  • Contains only T units
  • This product has been used as binder for coating agents and modifier for organic resins.

X-40-9246

X-40-9246

  • Good crack resistance
  • This product has been used as binder for coating agents and modifier for organic resins.

X-40-9250

X-40-9250

  • This product has flexibility owing to the introduction of D unit.
  • This product has excellent water repellency and water slip properties
  • This product has been used as a coating binder.

KR-5206

KR-5206

  • This product has the heat resistance of silicone resin and the room temperature curability of alkyd resin.

ES-1023

ES-1023

  • This product has the heat resistance of silicone resin and corrosion resistance and adhesion of epoxy resin.
  • This product has better substrate adhesion and impact resistance tan ES-1001N.
  • This product has been used as binder for coating agents.

KR-5230

KR-5230

  • This product has the heat resistance of silicone resin and the chemical resistance, flex resistance, and high gloss of polyester resin.
  • This is a standard product of polyester resin modified series.

ES-1002T

ES-1002T

  • This product has the heat resistance of silicone resin and corrosion resistance and adhesion of epoxy resin.
  • This product can be cured at room temperature in combination with polyamine curing agent (KP-390, etc.).
  • Since this product cures at room temperature, it has been used as binder for on-site painting coating agents.

ES-1001N

ES-1001N

  • This product has the heat resistance of silicone resin and corrosion resistance and adhesion of epoxy resin.
  • This is a standard product of epoxy resin modified series.
  • This product has been used as binder for coating agents.

KR-401N

KR-401N

  • This product forms flexible cured film.
  • High gloss
  • Not containing curing catalyst
    (KR-401 is containing curing catalyst)

KR-510

KR-510

  • Standard product of methyl/phenyl type
  • Modifying heat resistance and weather resistance of organic resins
  • This product imparts flexibility and crack resistance to silicone oligomer based coating agents.

KR-213

KR-213

  • For resin modification
  • Can add flexibility and crack resistance

KR-480

KR-480

  • This product is developed as a flame-retardant agent for polycarbonate.
  • This product has many phenyl groups and good compatibility with organic resins
  • This product has almost no Si-OH groups and is thermoplasticity.
  • This product has been used as a stress-release agent for epoxy molding.

KR-400

KR-400

  • Standard product of one-component type (containing curing catalyst)
  • High hardness

X-40-2327

X-40-2327

  • Fast curing

KR-401

KR-401

  • Excellent flexural resistance
  • High gloss

X-40-2667A

X-40-2667A

  • Addition cure type
  • Two-component type consisting of a main agent (X-40-2667A) and a curing agent (X-40-2667B)
  • Low curing shrinkage enables molded products and thick films
  • Good adhesion to glass substrates
