Shin-Etsu Silicone Selection Guide

Silicone Oligomers

Silicone oligomers are relatively low molecular weight silicone resins. Because of their structural characteristics, they are very unique products that can function as a main component, as a modifier for organic resins, and as a coating surface modifier.

Silicone oligomers are products whose reactive functional group is an alkoxysilyl group (Si-OR) and whose molecular weight is small. Because of the alkoxysilyl groups, when used in combination with a curing catalyst, they form a cured film at room temperature due to moisture in the air. There are also products that can be heat cured. Because of their low
molecular weight, they are easily compatible with other organic resins and are used as modifiers to improve weather resistance and adhesion. Many products contain 100% silicone active ingredients and do not contain organic solvents. There are also products whose reactive functional groups are alicyclic epoxy groups and acrylic groups.

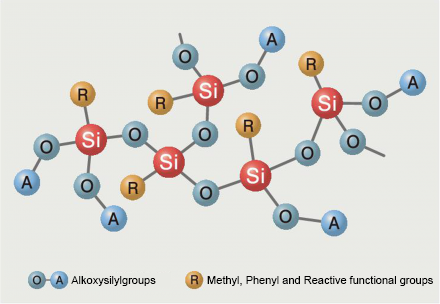

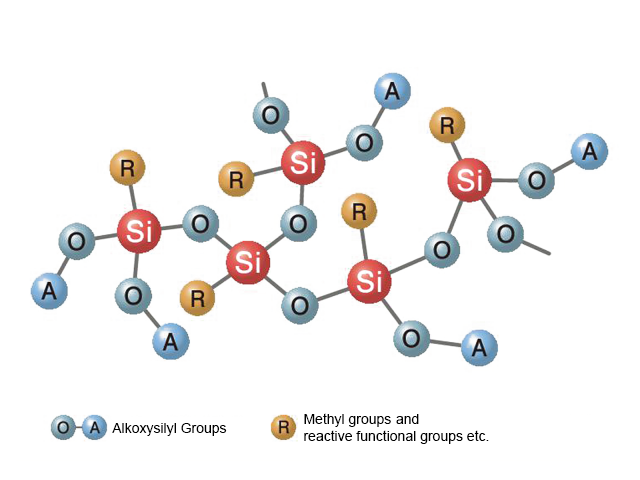

Silicone Oligomer Structural Formula Image

Image of silicone oligomer structural formula

.

  Silicone Resin Silicone Oligomer
Reactive Functional Groups Silanol group (Si-OH)∗ addition curing type of vinyl group and hydrosilyl group is also available Alkoxysilyl group (Si-OR)∗ alicyclic epoxy group and acrylic group are also available
Curing Method Heat curing Room temperature curing and heat curing
Solvent-based Organic solvents ∗ solids, TX solvent free, and water-based products are also available Solventless (100% silicone content)
How to Use Main component Main component, resin hybridizer
Applicable Fields Applications requiring higher durability (heat resistance, electrical insulation, etc.) When heating equipment is not available
When organic solvents cannot be used Modification of organic resins
  • Advanced Search

  • Required Performance

X-40-9309A

X-40-9309A

  • This product contains UV absorber to prevent UV degradation of base material.
  • This product cures at room temperature.
  • One-component type (contains curing catalyst)
  • This product forms high hardness coating film.

X-40-2761

X-40-2761

  • Acrylic equivalent 330g/mol
  • This product imparts flexural resistance to acrylic resins.
  • This product has excellent compatibility with acrylic resins and various photoinitiators.
  • This product is applicable to UV/EB curing systems.

X-40-2669

X-40-2669

X-40-2669

  • Relatively low molecular weight and excellent compatibility with epoxy resins
  • Good leveling and wettability with linear siloxane structure
  • Low viscosity and effective as a reactive diluent

X-40-9301

X-40-9301

  • Alkali resistance
  • Water resistance

X-40-9300

X-40-9300

  • Very high reactivity of alkoxy group and rapid curing
  • Alkali resistance
  • Water resistance

X-48-1800

X-48-1800

  • This product can be used by simply cold-blend*.
  • Applicable organic resins are silicone-modified acrylic polymers/polyesters/alkyds/weak solvent acrylic resins/NAD.
  • This product improves weather resistance, heat resistance, anti-marking pen fouling properties, acid/alkali resistance, etc..
  • Recommended additive amount is 10~50 parts per 100 parts resin solid content.

* Cold blend: A method of blending by simply mixing without heating

KR-4000A

KR-4000A

  • This product can be added to silicone coatings.
  • This product imparts water repellency and water sliding properties.
  • This product maintains anti-fouling property even after wiping-up application.

X-88-1007

X-88-1007

  • Good adhesion to hard-to-bond base materials such as SUS and acrylic
  • Good crack resistance and water repellency

X-88-1004

X-88-1004

  • Good adhesion to hard-to-bond base materials such as SUS and acrylic
  • High hardness and good scratch resistance

X-48-1600

X-48-1600

  • This product has high hardness and flexural resistance.
  • Since this product cures by de-ethanol reaction, it is environmentally friendly.

X-40-2728

X-40-2728

  • Relatively low molecular weight and excellent compatibility with epoxy resins
  • This product has a cyclic siloxane backbone and low cure shrinkage.
  • Good crack resistance due to bifunctional

X-48-1500

X-48-1500

  • This product has high hardness and flexural resistance.
  • Rapid curing

X-40-9312

X-40-9312

  • High hardness and crack resistance
  • Excellent resistance to yellowing and cracking after

X-48-1501

X-48-1501

  • Developed products
  • Combines high hardness, bending resistance, heat cracking resistance, and impact resistance

KR-470

KR-470

KR-470

  • Relatively low molecular weight and excellent compatibility with epoxy resin
  • Low shrinkage during curing due to cyclic siloxane structure

X-40-2450

X-40-2450

  • Easy surface migration when added to resins
  • Provides antistatic performance with a small amount of addition
  • This product can impart peeling, slipping and water sliding properties.

KR-4000G

KR-4000G

  • One-component type
  • High gloss
  • Excellent water repellency and water sliding properties
  • Exhibits antifouling performance even when wiped off.

KR-511

KR-511

  • Reactive functional groups are Vinyl groups.
  • Vinyl equivalent 530g/mol
  • Flame retardant for Polycarbonate

KC-89S

KC-89S

  • This product contains only T units.
  • This product forms high hardness cured film.
  • This product has been used as binder for coating agents.

X-48-5030

X-48-5030

  • UV curable, good curability under air
  • Low viscosity, excellent scratch resistance and low warpage
  • Compatible with coating methods that require low viscosity, such as spray coating

X-88-2003A

X-88-2003A

  • This product has high hardness and crack resistance. Excellent crack resistance, especially in high-temperature environments.
  • Excellent antifouling properties (water repellency, water sliding properties, and anti-marking pen fouling properties)
  • Fast curing
  • One-component type

KR-515

KR-515

  • Higher molecular weight than KC-89S
  • Contains only T units
  • This product has been used as binder for coating agents and modifier for organic resins.

KR-500

KR-500

  • Higher molecular weight than KR-515
  • Made up of T units only
  • Standard product in methyl type
  • This product has been used as binder for coating agents and modifier for organic resins.

X-40-9225

X-40-9225

  • Higher molecular weight than KR-500
  • Contains only T units
  • This product has been used as binder for coating agents and modifier for organic resins.

X-40-9246

X-40-9246

  • Good crack resistance
  • This product has been used as binder for coating agents and modifier for organic resins.

KR-2710

KR-2710

  • Flame retardant agents for polycarbonate
  • Good transparency

X-40-9250

X-40-9250

  • This product has flexibility owing to the introduction of D unit.
  • This product has excellent water repellency and water slip properties
  • This product has been used as a coating binder.

KR-400N

KR-400N

  • High hardness
  • KR-400N is made from KR-400 without curing catalysis.

X-40-2678

X-40-2678

  • Relatively low molecular weight and excellent compatibility with epoxy resin
  • Less shrinkage during curing due to cyclic siloxane structure
  • Good crack resistance due to di-functionality

KR-401N

KR-401N

  • This product forms flexible cured film.
  • High gloss
  • Not containing curing catalyst
    (KR-401 is containing curing catalyst)

X-40-2327

X-40-2327

  • Fast curing

X-40-9296

X-40-9296

  • Reactive functional groups are methacrylic groups.
  • Methacryl equivalent 230g/mol
  • Applicable to UV/EB curing system

KR-513

KR-513

  • Alkoxy groups are methoxy groups.
  • Acrylic equivalent 210g/mol
  • Applicable to UV/EB curing system
  • Lower volatility than KBM-5103 (monomer type)

KR-519

KR-519

  • Alkoxy groups are methoxy groups.
  • Organic substituent has both methyl group as well as mercapto group
  • Mercapto equivalent 450g/mol

KR-518

KR-518

  • Alkoxy groups are methoxy groups and ethoxy groups.
  • Mercapto equivalent 800g/mol

KR-516

KR-516

  • Alkoxy groups are methoxy groups.
  • The organic functional groups have methyl groups in addition to the epoxy groups.
  • Epoxy equivalent 280g / mol

X-24-9590

X-24-9590

  • Alkoxy groups are methoxy groups.
  • Epoxy equivalent 590g/mol

KR-517

KR-517

  • Alkoxy groups are methoxy groups and ethoxy groups.
  • Epoxy equivalent 830g/mol

KR-510

KR-510

  • Standard product of methyl/phenyl type
  • Modifying heat resistance and weather resistance of organic resins
  • This product imparts flexibility and crack resistance to silicone oligomer based coating agents.

KR-213

KR-213

  • For resin modification
  • Can add flexibility and crack resistance

KR-400

KR-400

  • Standard product of one-component type (containing curing catalyst)
  • High hardness

KR-401

KR-401

  • Excellent flexural resistance
  • High gloss
