X-48-5030
Solvent-free UV Curable Hard Coating
| Required Performance | Scratch ResistanceLow Warp Properties |
|---|---|
| Features and Applications | Developmental GoodsLow ViscosityUV Curing TypeSolvent-freeAtmospheric Curing |
- UV curable, good curability under air
- Low viscosity, excellent scratch resistance and low warpage
- Compatible with coating methods that require low viscosity, such as spray coating
Product Information
X-48-5030 is a solvent-free UV-curable hard coating agent.
It is coated with a film thickness of approximately 10 μm and irradiated with UV light of 2,000-3,000 mJ/cm2 under atmospheric conditions to form a film with excellent scratch resistance and low warpage.
It shows high adhesion to organic resins and is applicable as a hard coating agent for organic resin components such as PMMA, PC, and PET.
| Applicable solvent type | Organic solvent type |
|---|---|
| Solvent type | Solvent-free |
| Usage | Main component |
| Curing method | UV curing |
| Hardness of the coating | High |
| Appearance | Pale yellow to yellow transparent liquid |
| Non-volatile content (105°C x 3h) % | - |
| Active ingredient (%) | 100 |
| Viscosity at 25℃ | 40 mPa・s |
| Specific gravity at 25℃ | 1.19 |
| Refractive index at 25°C | 1.465 |
| Standard curing conditions | UV irradiation (under air, 2,000-3,000 mJ/cm2) |
| UN Number | UN3082 |
| Packaging | 100g, 1kg, 18kg |
(Not specified values)

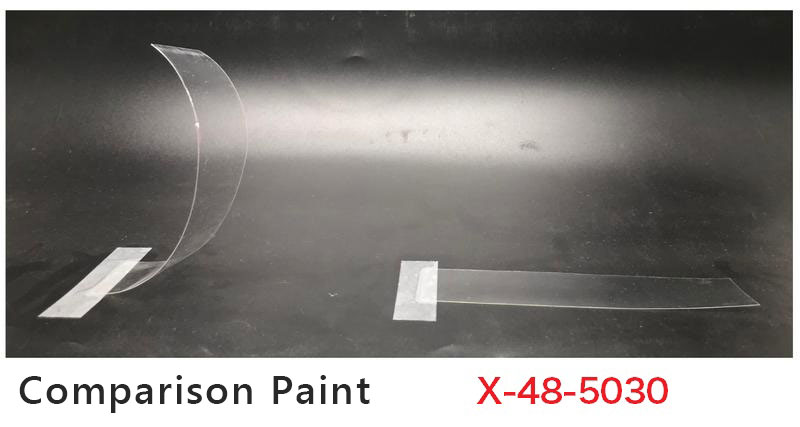

Low Warp
The state of the film was compared when the following coatings were applied to PET film at a film thickness of approximately 15 μm and UV cured. It can be seen that X-48-5030, which excels in low warpage, significantly suppresses film warpage compared to the comparative coatings, which are general UV-curable acrylic compositions. Coating conditions: Each sample coated on polycarbonate substrate with Bar Coater No. 8 → UV curing (under air, 2,400 mJ/cm2) Comparison paint = DPHA/HDDA/photoinitiator = 85/15/5 (weight ratio), photoinitiator = Omnirad-1173 (IGM Resins)Comparison of Warpage of Coated Film (PET)
Scratch Resistance, Low Viscosity, Film Hardness
Coating conditions: Each sample coated on polycarbonate substrate with Bar Coater No. 8 → UV curing (under air, 2,400 mJ/cm2) Film thickness: Approx. 15 μm| Coating film properties*1 | X-48-5030 | X-48-5031 | Comparative paints （DPHA/HDDA/Photoinitiator*4＝85/15/5） |
|---|---|---|---|
| Paint Viscosity（mPa・s） | 40 | 60 | 520 |
| Pencil hardness（750g） | 2H | 2H | 2H |
| Steel wool resistant*2 | Good | Good | Good |
| Taber test (500g x 500 rpm) | ⊿Hz=5.0 | ⊿Hz=6.8 | ⊿Hz=12.3 |
| Adhesion (base material: polycarbonate)*3 | Good | Good | Poor |
| Low warp | Good | Good | Poor |
（Not specified values）
*1 Coating conditions: Each sample is coated on a polycarbonate substrate with Bar Coater No. 8 → UV curing (under air, 2,400 mJ/cm2)
*2 No scratches in abrasion resistance test (200g load, 10 times of friction reciprocation) with steel wool (#0000) Good; scratches: Poor
*3 Adhesion: Good = when there is no peeling at all in the cross cut adhesion test (25 squares), Poor = when there is peeling.
*4 DPHA: Dipentaerythritol Hexaacrylate, HDDA: hexanediol diacrylate,
Photoinitiator: Omnirad-1173 (manufactured by IGM Resins)
