KR-470

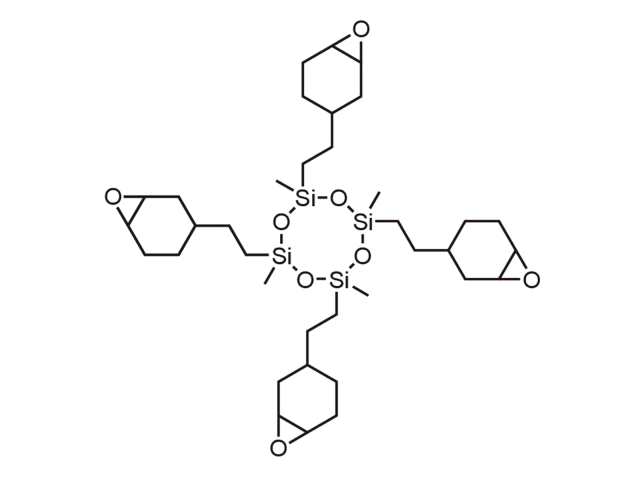

Silicone oligomer containing alicyclic epoxy groups
| Required Performance | Low Cure ShrinkageWeather ResistanceHeat Resistance |
|---|---|
| Features and Applications | Alicyclic Epoxy GroupCyclic SiloxaneFor Epoxy Resins |
- Relatively low molecular weight and excellent compatibility with epoxy resin
- Low shrinkage during curing due to cyclic siloxane structure
Product Information
KR-470 is a silicone oligomer that has only epoxy groups as reactive functional groups.
Acid anhydride, photo or thermal cationic curing is possible.
Although it has the same curing mechanism as epoxy resin, it has the heat resistance and high Tg of siloxane.
In addition, the type with cyclic siloxane structure has the advantage of minimal shrinkage during curing.
General Properties
| Item/Product Name | KR-470 | X-40-2678 | X-40-2669 | X-40-2728 |
|---|---|---|---|---|
| Type | Cyclic Siloxane | Cyclic Siloxane | Linear Siloxane | Cyclic siloxane |
| Features | Low cure shrinkage, high cross-linking | Crack resistance | Lower viscosity than KR-470, Excellent leveling and wetting properties |
Crack resistance, low viscosity |
| Organic functional groups | alicyclic epoxy | alicyclic epoxy | alicyclic epoxy | glycidyl |
| Number of epoxy functional groups | 4 | 2 | 2 | 2 |
| Viscosity 25℃(mPa・s) | 3,000 | 120 | 35 | 26 |
| Epoxy equivalent(g/mol) | 200 | 290 | 200 | 280 |
(Not specified values)
Comparison of Curing Properties
| Item/Product Name | KR-470 | Epoxy | Alicyclic epoxy | |
|---|---|---|---|---|
| Curing method | Acid anhydride curing | |||
| Hardness:Shore D | 87 | 85 | 88 | |
| Bending Modulus (MPa) | 2,590 | 2,940 | 3,020 | |
| Cure shrinkage ratio specific gravity method (%) | +2.1 | -1.7 | -5.3 | |
| Water absorption rate by boiling (%) | 0.46 | 0.28 | 0.56 | |
| Tg(℃) | 191 | 150 | 193 | |
| Coefficient of linear expansion (x10-5/K) | <Tg | 9.7 | 7.7 | 6.9 |
| >Tg | 15.4 | 17.6 | 16.2 | |
(Not specified values)
| Applicable solvent type | Organic solvent type |
|---|---|
| Solvent type | Solvent-free |
| Usage | Main component,Additive |
| Curing method | Heat curing,UV curing |
| Hardness of the coating | High |
| Appearance | Colorless transparent liquid |
| Active ingredient (%) | 100 |
| Viscosity at 25℃ | 3000mPa/s |
| Specific gravity at 25℃ | 1.10 |
| Refractive index at 25°C | 1.487 |
| Solvent | - |
| UN Number | N/A |
| Packaging | 1kg,18kg |
(Not specified values)
