Silicone Oligomer Type A

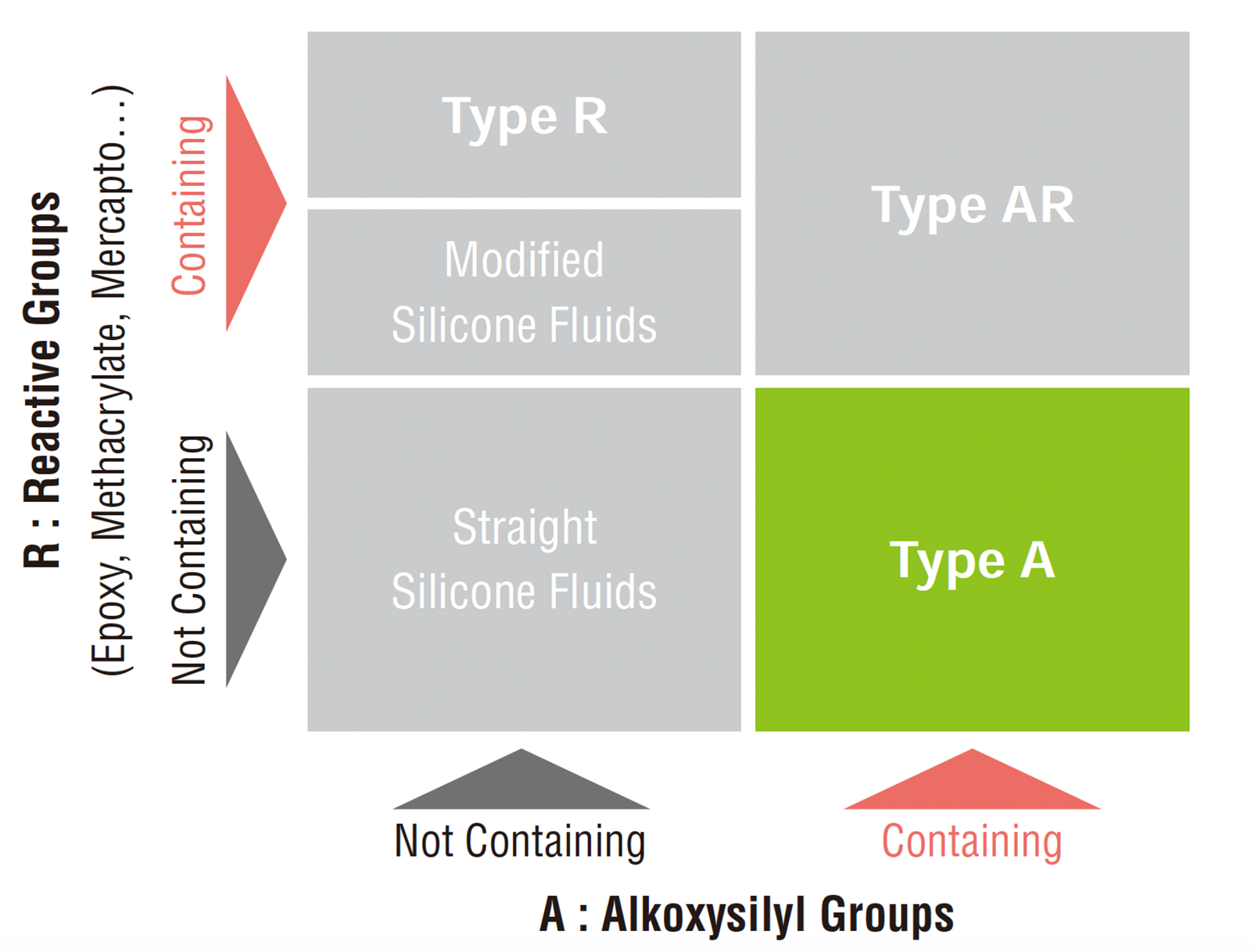

Type A silicone oligomers contain alkoxysilyl groups, but no reactive functional groups, and are composed of methyl groups alone or methyl and phenyl groups.
Type A products are classified into two categories: methyl and methyl/phenyl. Methyl products are mainly used alone to form cured films because of their high hardness, water repellency and excellent curability, while methyl/phenyl products are used as resin hybridizers because of
their excellent compatibility.

How to Use | Performance Features | ||
---|---|---|---|
Type A | Methyl group | Main agent, resin hybridizer | High hardness, water repellency, curing properties |
Methyl group, Phenyl group | High gloss, compatibility, crack and peel resistance | ||
Type AR | Epoxy group | Coupling agent between organic resin and inorganic material | Adhesion improvement |
Mercapto Group | Adhesion improvement | ||
Acryl groups | Adhesion improvement | ||
Methacrylic group | Adhesion improvement | ||
Vinyl groups | Flame retardancy improvement | ||
Type R | Alicyclic epoxy group | Primary agent and hybridizer for epoxy and acrylic compositions | Low cure shrinkage, heat resistance |
Acrylic group | Flexible, crack resistance |
Products when used as a Coating Agents
This section introduces the general physical properties of each product, the hardness of the cured film, the positioning of crack resistance, and the differences in curing speed.
Product List
Product name/Item | Functional Groups | Alkoxy Group | Viscosity at 25°C mm2/s | Features |
---|---|---|---|---|
KC-89S | Methyl | Methoxy | 5 | High hardness, low degree of polymerization |
KR-515 | Methyl | 7 | High hardness, higher molecular weight than KC-89S | |
KR-500 | Methyl | 25 | High hardness, medium weight | |
X-40-9225 | Methyl | 100 | Medium hardness, high degree of polymerization | |
X-40-9246 | Methyl | 80 | Flexible | |
X-40-9250 | Methyl | 80 | Flexible, water repellent | |
KR-401N | Methyl/Phenyl | 20 | Low phenyl content, medium hardness | |
X-40-9227 | Methyl/Phenyl | 15 | Low phenyl content, better flexibility than KR-510 | |
KR-510 | Methyl/Phenyl | 100 | Contains medium phenyl, flexible | |
KR-213 | Methyl/Phenyl | 16 | High phenyl content, flexible | |
X-40-9312 (Development product) | Methyl/Phenyl | 250 | High hardness, crack resistance | |
X-40-9300 (Development product) | Not disclosed | 70 | Fast curing, alkali resistance, water resistance | |
X-40-9301 (Development product) | Not disclosed | 12 | Alkali resistance, water resistance | |
X-88-1004 (Development product) | Methyl | 3.5 | High hardness, excellent adhesiveness | |
X-88-1007 (Development product) | Methyl | 19 | Excellent water repellency and adhesiveness | |
X-48-1500 (Development product) | Methyl | 50 | High hardness, flex resistance | |
X-48-1600 (Development product) | Methyl | Ethoxy | 15 | Flexible, deethanolated |
(Not specified values)

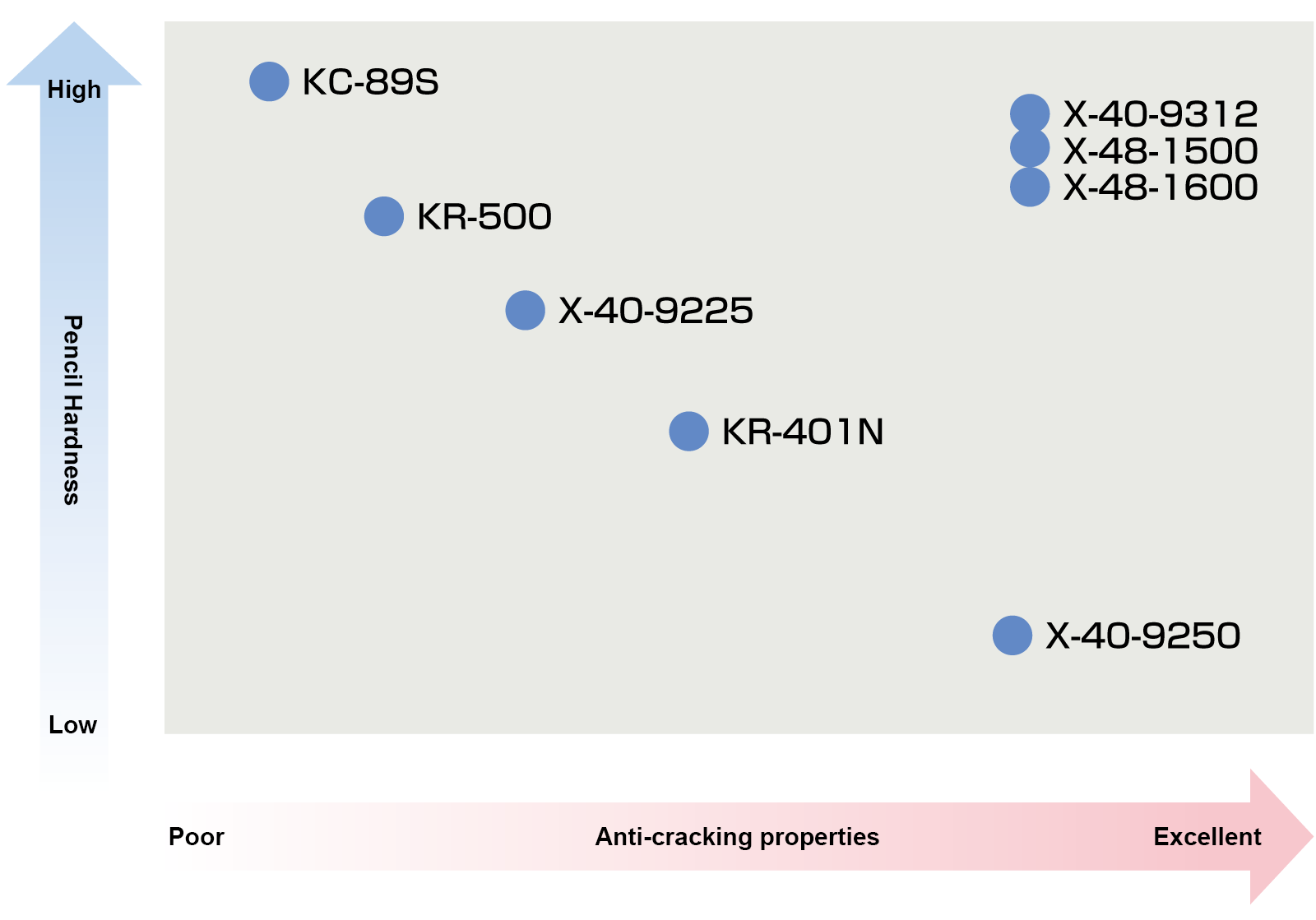

Hardness and Crack Resistance Positioning (at Room Temperature Curing)

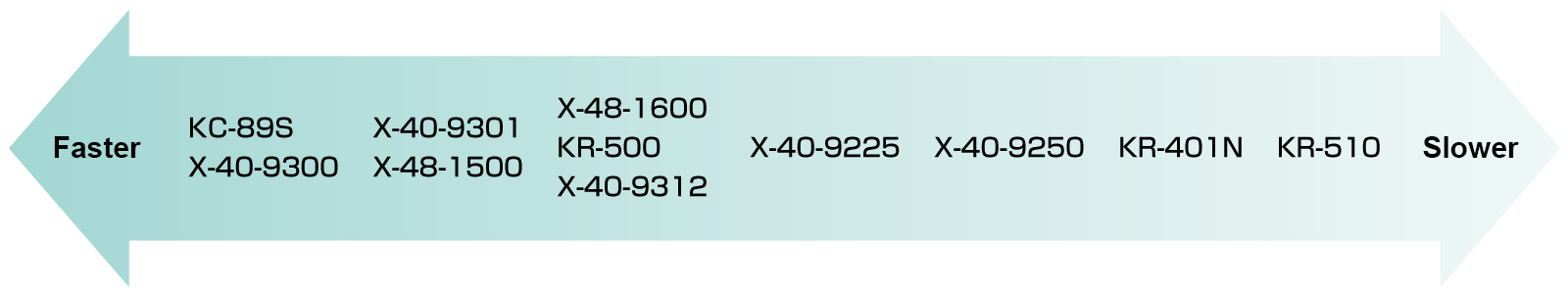

Cure Speed
One-component (Containing Curing Catalyst) Type
One-component curing type products are also available, in which type A oligomers contain a curing catalyst. KR-400 is designed for high hardness, KR-401 for crack resistance, X-40-2327 for fast curing, KR-4000G for water repellency, water sliding property, and high gloss, and KR-4000F2 for water and oil repellency.
Silicone Oligomer based Coating Agent
A one-component coating agent containing a curing catalyst. It is used as a water repellent for treating inorganic materials because its excellent water repellency and water sliding properties prevent staining.
Main Products
Product Name/Item | Organic Functional Groups | Viscosity at 25°C (mm2/s) | Tack free at 25°C (min) | Contact angle 2μL ° | Water sliding angle 20μL ° | Features |
---|---|---|---|---|---|---|
KR-400 | Methyl | 1.2 | 30 to 60 | 92 | 32 | Formulation of a high hardness film |
X-40-2327∗ | Methyl | 0.9 | 5 to 10 | 93 | 67 | Fast curing |
KR-401 | Methyl/Phenyl | 20 | 30 to 60 | 84 | 51 | Excellent resistance to cracking and bending |
KR-4000G | Methyl | 5 to 10 | 60 | 101 | 25 | Excellent water-sliding properties and gloss |
(Not specified values)
- ∗ Base material:
- Polished steel plate, film thickness=10μm, 25°C/70%RH curing (tack-free time varies with temperature and humidity)
∗ Acid component in the product.
Application Examples
Stain-resistant coatings

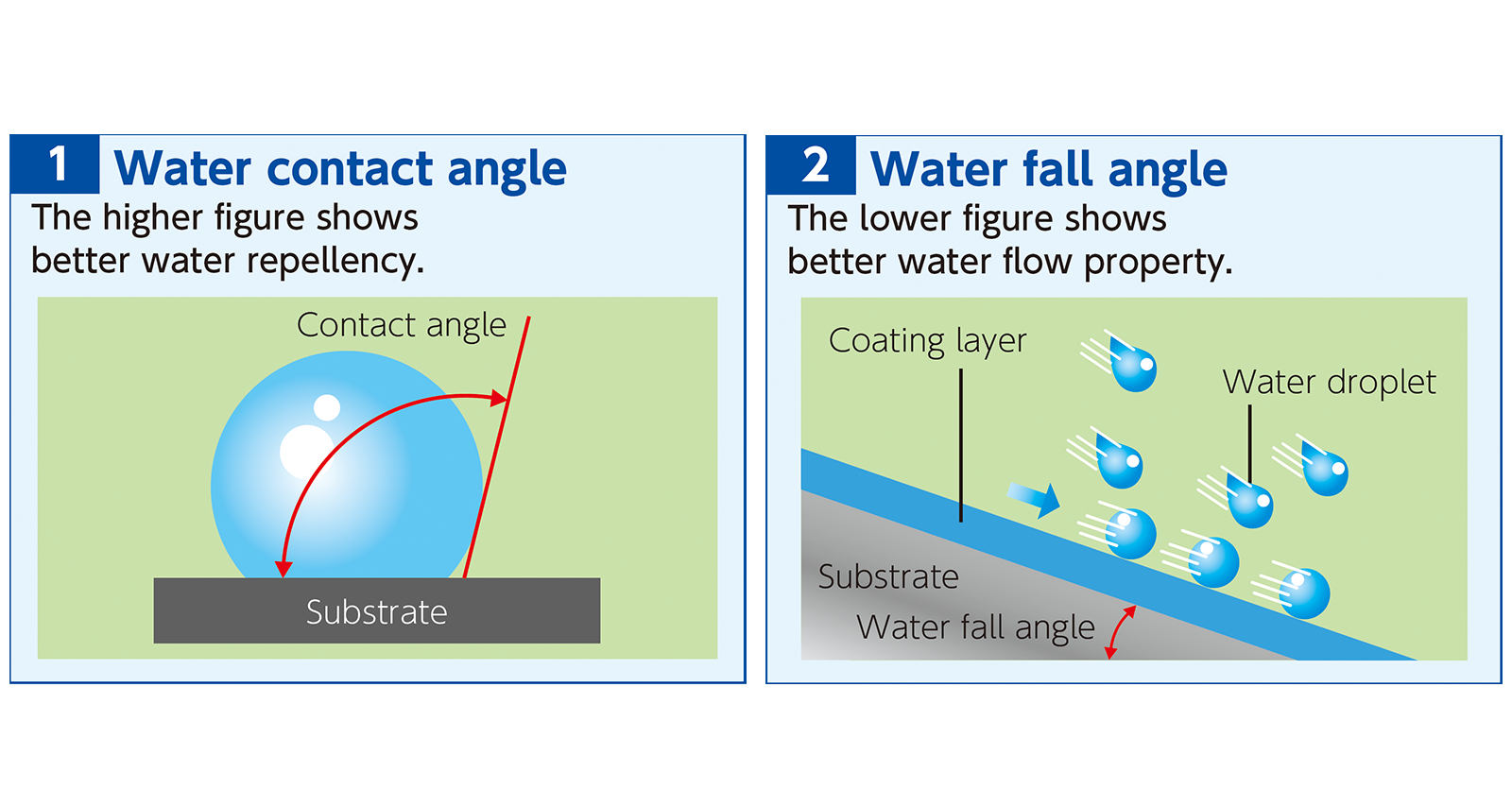

Water Contact Angle and Water Sliding Angle
Silicone Oligomer based Coatings
Due to its excellent water repellent/oil repellent properties, it is resistant to oil stains and can be used as a raw material for coatings that easily remove oil stains with a light wipe. Even when wiped up with a cloth before curing to make a thinner film, it still exhibits water repellency and oil repellency. In addition, although it is a fluorinated product, it can be diluted with common organic solvents.
Development Products
Product Name | Tack-free Time min at 25℃ | Pencil Hardness/Curing Days | Hexadecane Contact Angle 2μL° | Water Contact Angle 2μL° | Water Sliding Angle 2μL° |
---|---|---|---|---|---|
KR-4000F2 | 30 | F/2→H/7 | 65 | 111 | 16 |
(Not specified values)
Compatibility with Organic Solvents
Product Name | Diluted in Toluene 50wt% | Isoparaffin Dilution 50wt% |
---|---|---|
KR-4000F2 | Compatible | Compatible |
Conventional fluorinated coating agent (Shin-Etsu product) | Separation | Separation |
Stain Prevention Test with Oil-based Marker
∗ Film formed on glass with Bar Coater No.3, cured for 24h at room temperature
Product when used as a Resin Hybridizer
The silanol groups generated by the hydrolysis of alkoxysilyl or alkoxysilyl groups can be used to modify other organic resins to improve their heat resistance and weather resistance. The reaction mechanism involves “de-alcohol condensation” of the alcoholic hydroxyl groups and alkoxysilyl groups in each organic resin, and “dehydration condensation” of the silanol groups. Water-based organic resins include the methyl group. For solvent-based organic resins, phenyl oligomers are generally used.

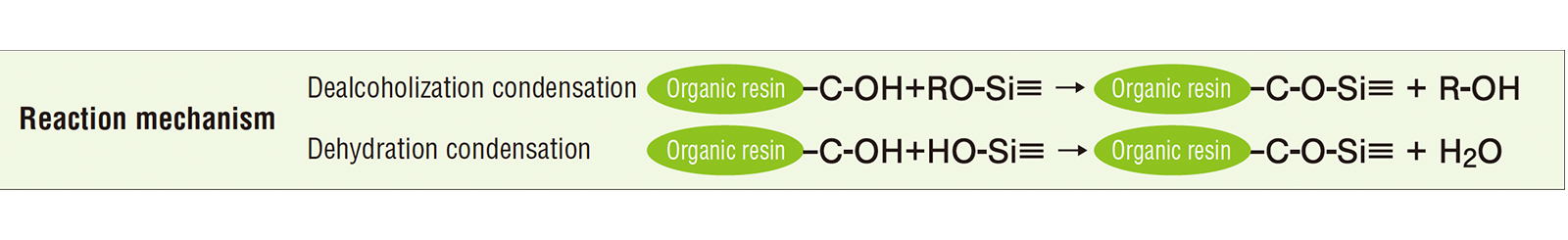

Reaction Mechanism
Features of each Organic Resin Modified with Silicone
-
- Acrylic Resins
- In addition to the inherent solvent resistance, chemical resistance, and durability of acrylic resins, these resins can also provide weatherability and heat resistance, making them widely used as coating resins for building materials.
-
- Epoxy Resins
- In addition to the inherent anticorrosive properties of epoxy resins, they can also provide weather and heat resistance, and are therefore often used in coatings to protect against aggressive substances.
-
- Polyester Resin
- In addition to the inherent bending resistance of polyester resin, it can also provide weather and heat resistance, making it suitable for use in paints for construction materials, general industry, and home appliances used at high temperatures.
-
- Alkyd resin
- Because alkyd resin can be given weather resistance, it is used as a room temperature curing paint resin for tanks, ships, bridges, etc. where weather resistance is required.
Main Products
- KR-510
- Alkoxy Oligomers Containing Methyl/Phenyl Groups
KR-510 is a methyl/phenyl silicone oligomer containing methoxy groups. Because it contains phenyl groups, it has excellent compatibility with organic resins. By mixing with or demethanol reacting with organic resins that have reactive groups with methoxysilyl groups, it can impart heat resistance, weather resistance, and chemical resistance to resins, and can also be used as a reactive diluent.
Application Examples
By incorporating the siloxane backbone of silicone oligomers into polyester resins, weather resistance can be improved.

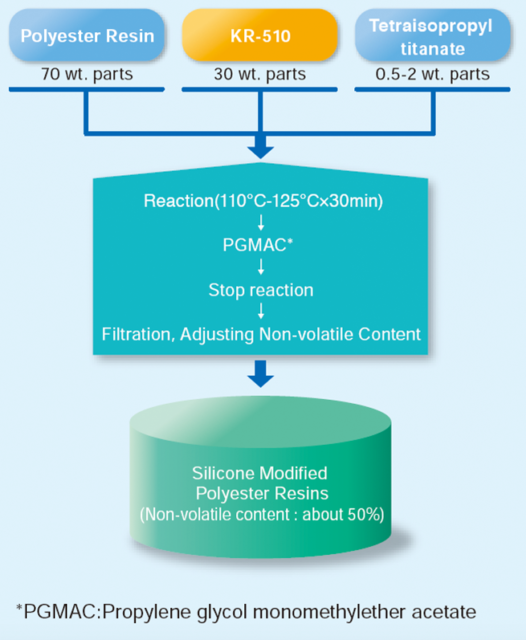

Modification of Polyester Resin by Silicone Oligomers

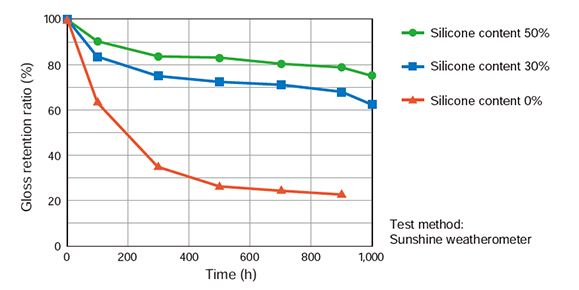

Results of Weatherability Evaluation of Silicone Modified Polyester Resin
General Properties
Item/Product Name | KR-510 |
---|---|
Appearance | Colorless transparent liquid |
Viscosity at 25°C (mm2/s) | 100 |
Specific gravity at 25°C | 1.16 |
Refractive Index at 25°C | 1.509 |
Amount of methoxy groups (wt%) | 17 |
Active ingredient (%) | 100 |
(Not specified values)
Coating Film Properties
Item/Curing Conditions | 285°C×1min | 285°C×10min |
---|---|---|
Pencil hardness | 2H | 4H |
Adhesion (cross cut adhesion test) | 100/100 | 100/100 |
Impact resistance Dupont style (cm) | 50 or more | 50 or more |
MEK∗ rubbing frequency | 100 | 100 or more |
Xylene rubbing frequency | 10 | 100 or more |
(Not specified values)
- ∗MEK:
- Methyl ethyl ketone
- KR-500
- Methyl group-containing alkoxy oligomers
KR-500 is a methyl silicone oligomer with methoxy groups. By mixing it with organic resins having reactive groups with methoxysilyl groups or by demethanol reaction, it can add heat resistance, weather resistance, and chemical resistance to resins. It can also be applied to water-based resins.
Application Examples
Modified by dehydration and de-alcohol condensation, they can impart weather resistance in addition to adhesion to materials.

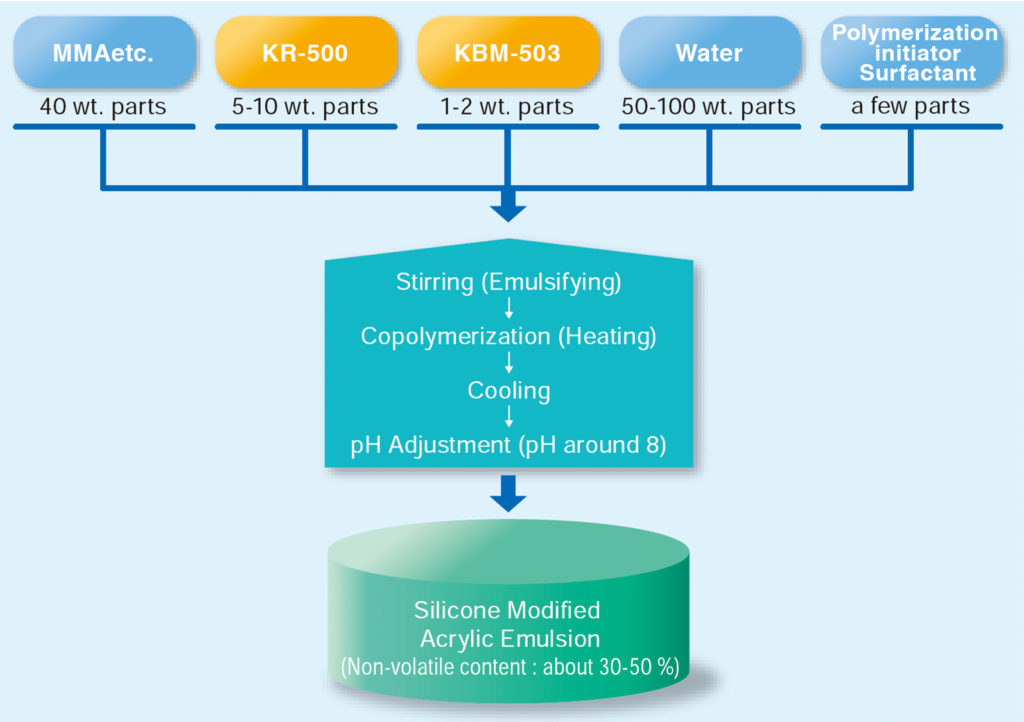

Modification Method for Acrylic Emulsions using Silicone Oligomers

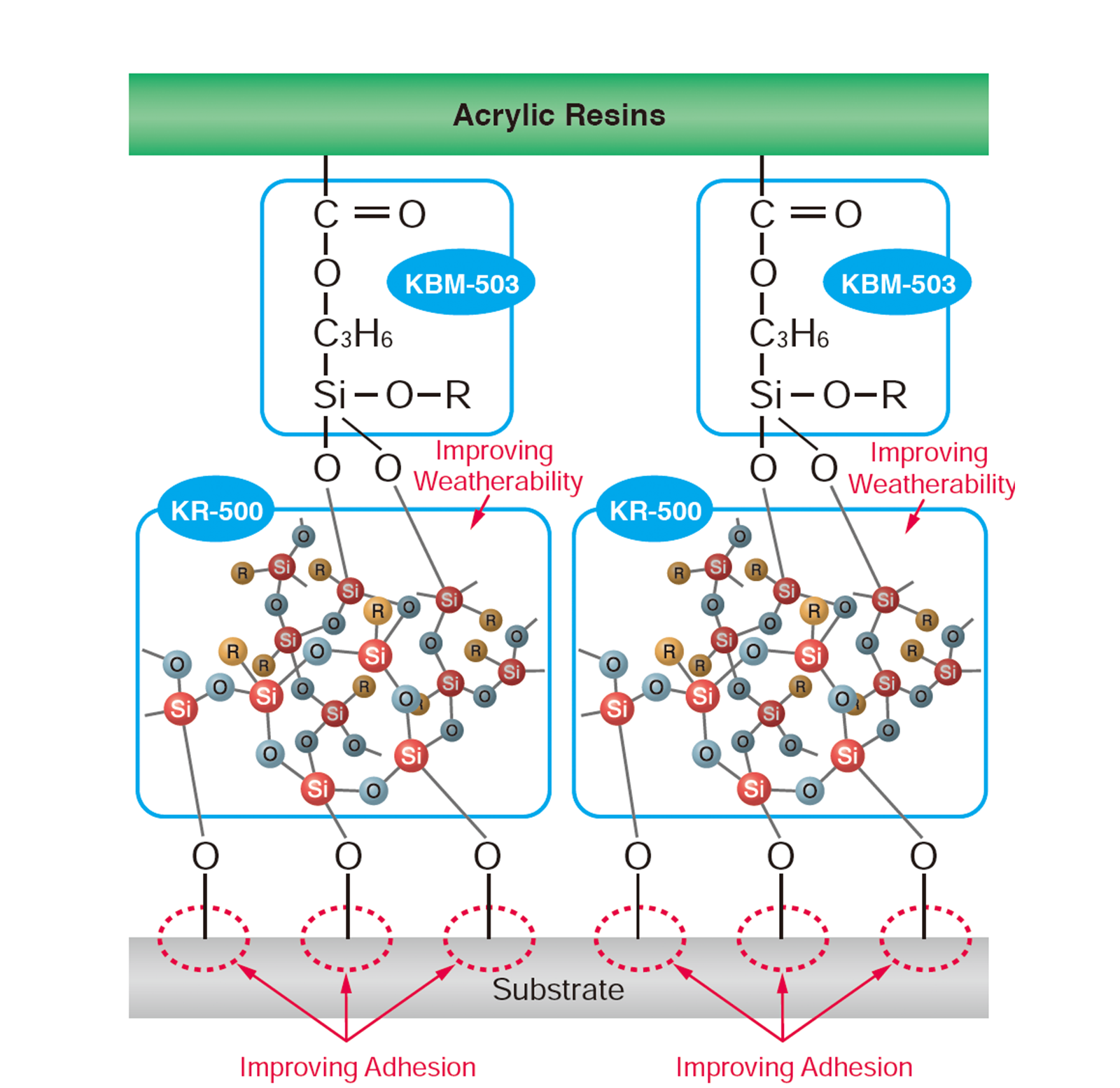

Resin Modification Model
General Properties
Item/Product Name | KR-500 |
---|---|
Features | Medium polymeric materials |
Appearance | Colorless transparent to pale yellow slightly cloudy liquid |
Viscosity at 25°C (mm2/s) | 25 |
Specific gravity at 25°C | 1.15 |
Refractive Index at 25°C | 1.403 |
Amount of methoxy groups (wt%) | 28 |
Active ingredient (%) | 100 |
(Not specified values)
X-40-9309A

X-40-9309A
- This product contains UV absorber to prevent UV degradation of base material.
- This product cures at room temperature.
- One-component type (contains curing catalyst)
- This product forms high hardness coating film.
KR-4000A

KR-4000A
- This product can be added to silicone coatings.
- This product imparts water repellency and water sliding properties.
- This product maintains anti-fouling property even after wiping-up application.
X-88-1007

X-88-1007
- Good adhesion to hard-to-bond base materials such as SUS and acrylic
- Good crack resistance and water repellency
X-88-1004

X-88-1004
- Good adhesion to hard-to-bond base materials such as SUS and acrylic
- High hardness and good scratch resistance
X-48-1600

X-48-1600
- This product has high hardness and flexural resistance.
- Since this product cures by de-ethanol reaction, it is environmentally friendly.
X-48-1500

X-48-1500
- This product has high hardness and flexural resistance.
- Rapid curing
X-40-9312

X-40-9312
- High hardness and crack resistance
- Excellent resistance to yellowing and cracking after
X-48-1501

X-48-1501
- Developed products
- Combines high hardness, bending resistance, heat cracking resistance, and impact resistance
KR-4000G

KR-4000G
- One-component type
- High gloss
- Excellent water repellency and water sliding properties
- Exhibits antifouling performance even when wiped off.
KR-401N

KR-401N
- This product forms flexible cured film.
- High gloss
- Not containing curing catalyst
(KR-401 is containing curing catalyst)
KR-401

KR-401
- Excellent flexural resistance
- High gloss
X-40-2327

X-40-2327
- Fast curing
KR-400

KR-400
- Standard product of one-component type (containing curing catalyst)
- High hardness
KR-213

KR-213
- For resin modification
- Can add flexibility and crack resistance
KR-510

KR-510
- Standard product of methyl/phenyl type
- Modifying heat resistance and weather resistance of organic resins
- This product imparts flexibility and crack resistance to silicone oligomer based coating agents.
KC-89S

KC-89S
- This product contains only T units.
- This product forms high hardness cured film.
- This product has been used as binder for coating agents.
KR-400N

KR-400N
- High hardness
- KR-400N is made from KR-400 without curing catalysis.
X-40-9250

X-40-9250
- This product has flexibility owing to the introduction of D unit.
- This product has excellent water repellency and water slip properties
- This product has been used as a coating binder.
X-40-9246

X-40-9246
- Good crack resistance
- This product has been used as binder for coating agents and modifier for organic resins.
X-40-9225

X-40-9225
- Higher molecular weight than KR-500
- Contains only T units
- This product has been used as binder for coating agents and modifier for organic resins.
KR-500

KR-500
- Higher molecular weight than KR-515
- Made up of T units only
- Standard product in methyl type
- This product has been used as binder for coating agents and modifier for organic resins.
KR-515

KR-515
- Higher molecular weight than KC-89S
- Contains only T units
- This product has been used as binder for coating agents and modifier for organic resins.
