KBE-9103P

Required Performance	Adhesion
Features and Applications	Improved Stability

Silane coupling agent with a ketimine structure
This product can be mixed with materials that were previously unmixable with aminosilane.
Aminosilane is formed through deprotection progresses with moisture and water.
Improved stability of compositions (epoxy) and improved adhesion can be expected.

Product Information

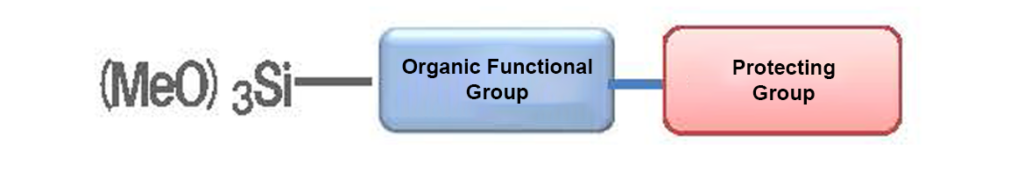

Because this silane coupling agent protects the functional groups, it can also be mixed with materials that have been impossible to mix until now.In addition, improved adhesion can be expected.

KBE-9103P Application Data

Storage Stability in Epoxy Resins

Compounding

EPIKOTE 827: 50 parts
Toluene: 50 parts
Silane coupling agent: 5 parts

Test Result of Viscosity(mm²/s)
	No additive	KBE-9103P	KBE-903
after 3 days	4.2	4.4	7.8
after 14 days	4.3	4.7	8.6

(Not specified values)

Adhesion Test of Epoxy Internal Addition Adhesives

Compounding

EPIKOTE 827: 100 parts
Silane coupling agent: 5 parts
Triethyltetramine: 5 parts

Tensile Strength Test Result with Aluminum(MPa)
	No additive	KBE-9103P	KBE-903
Initial Strength	3.9	7.6	6.1
Water resistant test (95℃/10 h)	3.4	6.4	5.2

(Not specified values)

Tensile Strength Test Result with Iron Plate(MPa)
	No additive	KBE-9103P	KBE-903
Initial Strength	12.4	17.8	15.7
Water resistant test (95℃/10 h)	9.3	14.1	13.5

(Not specified values)

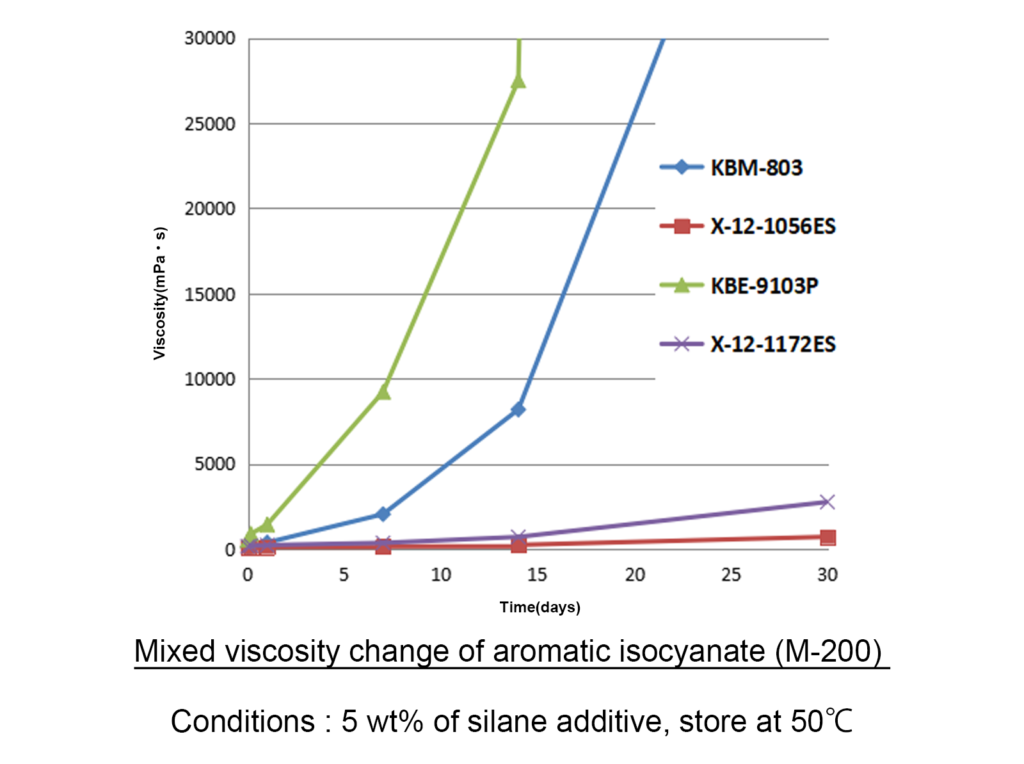

Application Data (Mixing Stability with Isocyanate Compounds)

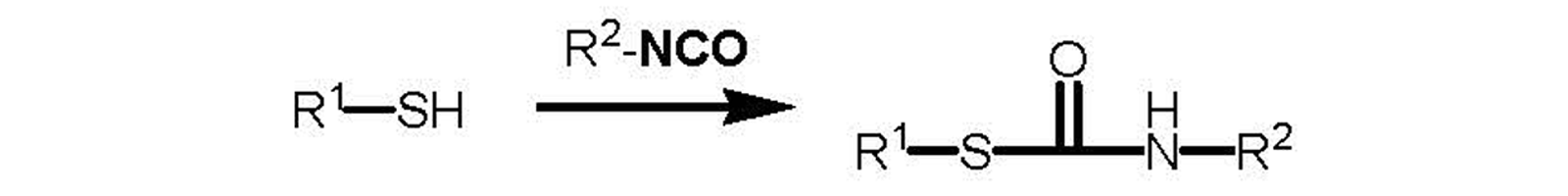

KBM-803 undergoes urethanization with isocyanate compounds.Since X-12-1056ES protects the mercapto group with a silyl group, urethanization does not proceed and the mixing stability is good.

Applied Data (Mixing Stability with Isocyanate Compounds)

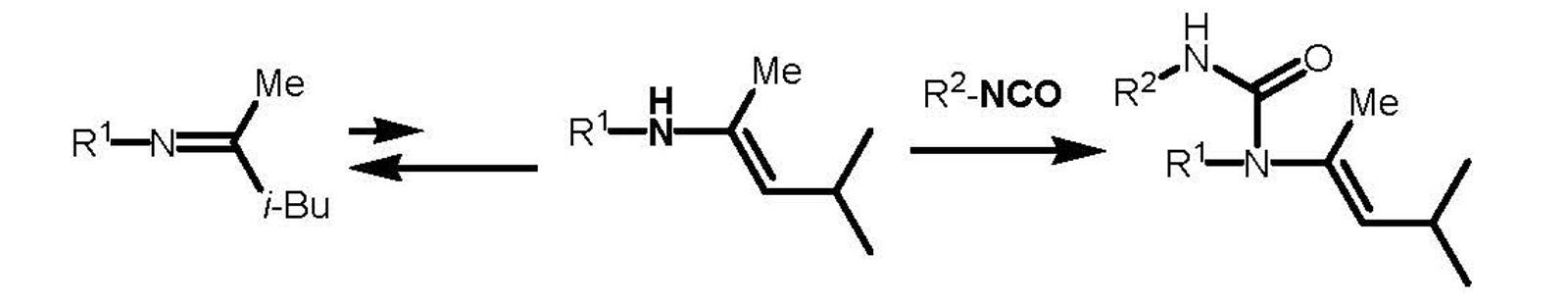

KBE-9103P is formed by imine-enamine tautomerism into an enamine conformation and reacts with isocyanate compounds.X-12-1172ES does not tautomerize, so it is good for mixing stabilities.

Applied Data (Mixing Stability with Isocyanate Compounds)

Applicable solvent type	Organic solvent type
Applicable resin	Epoxy, Acrylic, Polycarbonate, Urethane, ABS, EPDM, EPM, PBT, PET, Urethane rubber, Nylon, Nitrile rubber, Neoprene rubber, Phenol, Furan, Polyimide, Polyethylene, Polyvinyl chloride, Polysulfide, Polystyrene, Polypropylene, Melamine
Solvent type	Solvent-free
Usage	Additive
Organic functional groups	Amino group

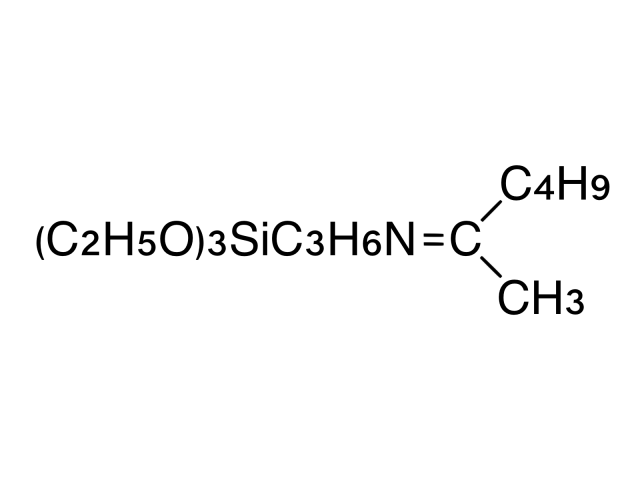

Chemical name	3-Triethoxysilyl-N- (1,3 dimethyl-butylidene) propylamine
Flash Point (°C)	134
Specific gravity	1.437
Refractive index	1.437
Number of alkoxy groups	3
Water solubility	Insoluble
UN Number	N/A
Packaging	1kg, 16kg, 180kg

(Not specified values)
