Shin-Etsu Silicone Selection Guide

KBM-1083

　　　
Required Performance AdhesionAlkali ResistanceWater Resistance
Features and Applications Primer TreatmentCoating AdditiveFiller Surface Treatment
  • Silane coupling agent with vinyl group and longer spacer chain than conventional product (KBM-1003)
  • Owing to the long spacer chain, improvement of hydrophobicity and flexibility can be expected.
  • Improvement of high filler filling, flexibility of cured material, alkali resistance, water resistance can be expected.

Product Information

Features and Resulting Properties

Improved hydrophobicity (lipophilicity) ⇒
Improved resin compatibility
Filler high filling
Improved alkali resistance
Improved flexibility ⇒
Maximize freedom of functional groups(improved reactivity)
Improved adhesiveness　Improved flexibility of cured material

Comparison of Coating Film Properties of Modified Polymers

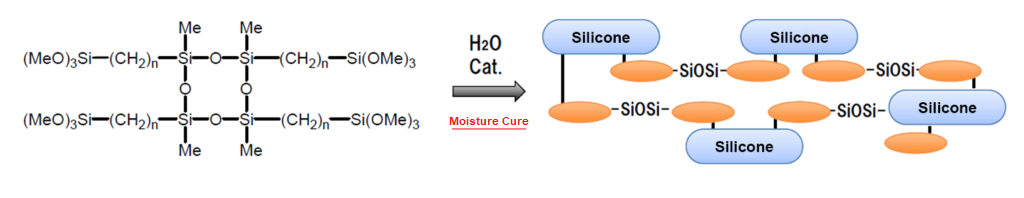

* Modified silicone with vinylsilane

KBM-1083 modified material
(n = 8)		 KBM-1003 modified material
(n = 2)		 Alkoxy oligomer
(KR-500)
Tack-free time 2min 10min 30min
Alkali resistance1) + – –

(Not specified values)

* Formulation polymer: curing agent = 100:5 Curing agent = tetrabutoxytitanium
Tack-free is confirmed by finger touch
1) Erosion of coating film confirmed by 10% NaOH solution

KBM-1083 Application Data

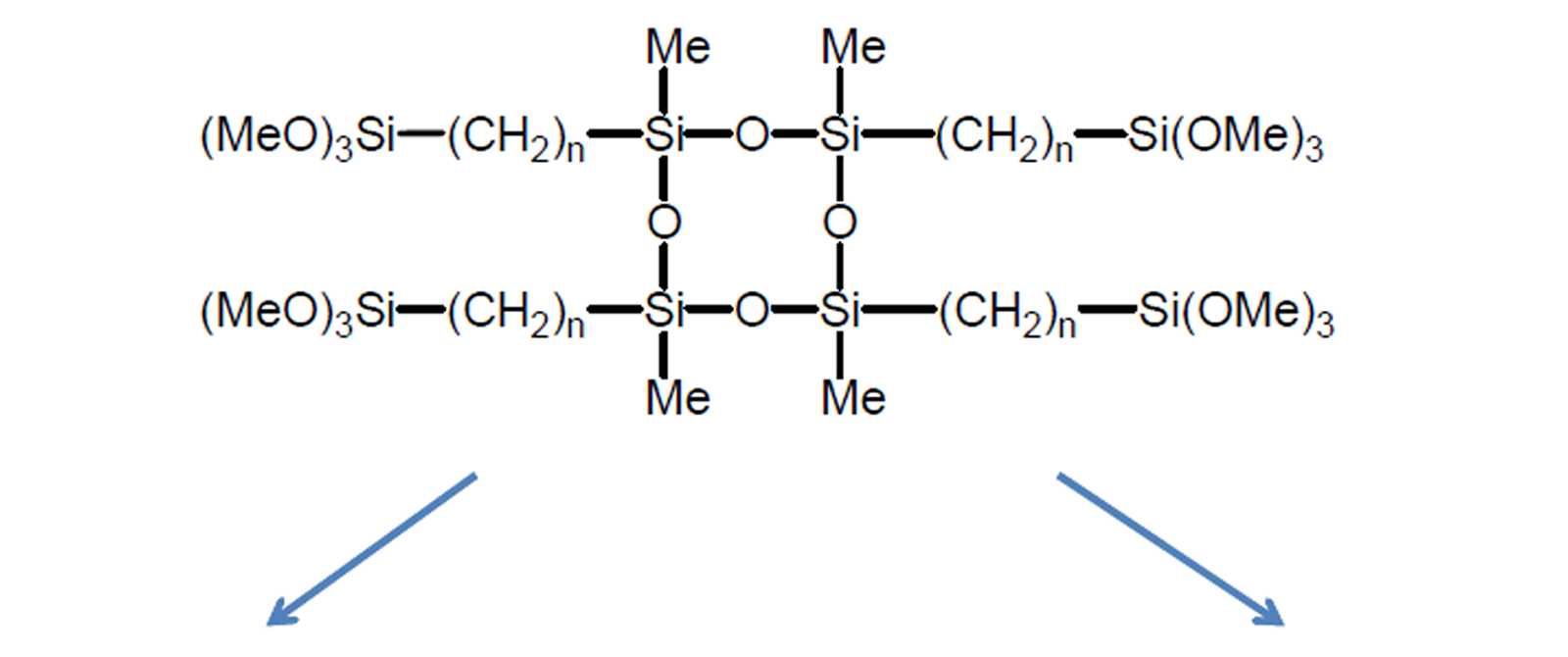

Size of steric hindrance around the alkoxysilyl group
n=2 > n=8

* Relaxation of steric hindrance by long-linked chains improves reactivity of hydrolytic condensation of alkoxysilyl groups and improves curability

Improved alkali resistance by introduction of octyl group (a hydrophobic group)

Applicable solvent type Organic solvent type, Water type
Applicable resin EPDM, EPM, Diallyl phthalate, Unsaturated polyester, Polyethylene, Polypropylene
Solvent type Solvent-free
Usage Main component, Additive
Organic functional groups Vinyl group
Chemical name 7-Octenyltrimethoxysilane
Flash Point (°C) 122
Minimum covering area m2/g 336
Molecular weight 232.4
Specific gravity 0.92
Refractive index 1.423
Boiling point (°C) 100℃/0.93kPa
Number of alkoxy groups 3
Methoxy/ethoxy group Methoxy group
Water solubility Slightly soluble
UN Number N/A
Packaging 1kg, 16kg

(Not specified values)

Product Inquiry

KBM-1083

Inquiry Form

Contact by Telephone or Fax

Related Material

Product Brochure "Silane Coupling Agents" [1.5MB]

Related Product List

Product Name Organic Fucntional Group Product Category Applicable Solvent System For Polyethylene For Polypropylene For Polystyrene For Acrylic For PVC For Polycarbonate For Nylon For Urethane For PBT・PET For ABS For Melamine For Phenol For Epoxy For Polyimide
X-12-1126 Quaternary Ammonium Salt Antibacterial Silane Organic Solvent, Water System + + + + + + + + + + +
KBM-9418-40 Quaternary Ammonium Salt Antibacterial Silane Organic Solvent, Water System + + + + + + + + + + +
POLON-V8 Quaternary Ammonium Salt Antibacterial Silane Organic Solvent, Water System + + + + + + + + + + +
X-12-1139 Quaternary Ammonium Salt Antibacterial Silane Organic Solvent, Water System + + + + + + + + + + +
X-12-1048 Acrylic Multi Functional Group Type (Organic Chain Type) Organic Solvent, Water System + + + + + + ++ +
X-12-1050 Acrylic Multi Functional Group Type (Organic Chain Type) Organic Solvent, Water System + + + + + + ++ +
KBM-5103 Acrylic – Organic Solvent, Water System + + + + + + ++ +
KBP-64 Amino VOC Free Type Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBP-90 Amino VOC Free Type Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBE-9103P Amino Protected Functional Group Type Organic Solvent + + ++ ++ ++ + ++ + + + + ++ ++ +
X-12-1172ES Amino Protected Functional Group Type Organic Solvent + + ++ ++ ++ + ++ + + + + ++ ++ +
KBE-903 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
X-12-972F Amino Multi Functional Group Type (Organic Chain Type) Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-6803 Amino Long Chain Spacer Type Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-573 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-575 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-602 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-603 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-903 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-6103 Amino Short Chain Silane Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
X-12-5263HP Amino Multi Hydrolytic Group Type Organic Solvent, Water System + + ++ ++ ++ + ++ + + + + ++ ++ +
KBM-3086 – Multi Hydrolytic Group Type Organic Solvent, Water System + + + + + + + + + + + + + +
KBM-9659 Isocyanurate Multi Hydrolytic Group Type Organic Solvent, Water System + + + + + + + + + + + + + +
KBE-9007N Isocyanate – Organic Solvent + + ++ + + + + + ++
X-12-1159L Isocyanate Multi Functional Group Type (Organic Chain Type) Organic Solvent + + ++ + + + + + ++
X-12-1195 – Blocked Type Organic Solvent, Water System + ++ ++ + + + + + ++
X-12-1293 – Blocked Type Organic Solvent, Water System + ++ ++ + + + + + ++
X-12-1308ES – Blocked Type Organic Solvent, Water System + ++ ++ + + + + + ++
KBE-585A Ureido – Organic Solvent, Water System ++ ++ + + +
KBM-585 Ureido – Organic Solvent, Water System ++ ++ + + +
KBE-402 Epoxy – Organic Solvent, Water System + + + + + + + + + + + + + +
KBE-403 Epoxy – Organic Solvent, Water System + + + + + + + + + + + + + +
KBM-303 Epoxy – Organic Solvent, Water System + + + + + + + + + + + + + +
KBM-402 Epoxy – Organic Solvent, Water System + + + + + + + + + + + + + +
KBM-403 Epoxy – Organic Solvent, Water System + + + + + + + + + + + + + +
X-12-981S Epoxy Multi Functional Group Type (Organic Chain Type) Organic Solvent, Water System + + + + + + + + + + + + + +
X-12-984S Epoxy Multi Functional Group Type (Organic Chain Type) Organic Solvent, Water System + + + + + + + + + + + + + +
KBM-4803 Epoxy Long Chain Spacer Type Organic Solvent, Water System + + + + + + + + + + + + + +
X-12-1135 Carboxy VOC Free Type Organic Solvent, Water System + + + + + + + + + + +
X-12-1116 – Chelate Functional Type Organic Solvent, Water System + + + + + + + + + + +
X-12-989MS – Chelate Functional Type Organic Solvent, Water System + + + + + + + + + + +
KBM-1403 Styryl Polymerizable Type Organic Solvent + +
KBE-1003 Vinyl – Organic Solvent, Water System ++ ++
X-12-1290 Vinyl Polymerizable Type Organic Solvent, Water System ++ ++
KBM-1003 Vinyl – Organic Solvent, Water System ++ ++
KBM-1083 Vinyl Long Chain Spacer Type Organic Solvent, Water System ++ ++
X-12-1214A – Benzotriazole Type Organic Solvent, Water System + + + ++ ++ + + + + + ++
KBE-502 Methacrylic – Organic Solvent, Water System ++ ++ ++ + + + ++
KBE-503 Methacrylic – Organic Solvent, Water System ++ ++ ++ + + + ++
KBM-502 Methacrylic – Organic Solvent, Water System ++ ++ ++ + + + ++
KBM-503 Methacrylic – Organic Solvent, Water System ++ ++ ++ + + + ++
KBM-5803 Methacrylic Long Chain Spacer Type Organic Solvent, Water System ++ ++ ++ + + + ++
X-12-1303MS Methacrylic Short Chain Silane Organic Solvent, Water System ++ ++ ++ + + + ++
X-12-1056ES Mercapto Protected Functional Group Type Organic Solvent ++ ++ ++ + + + ++
X-12-1154 Mercapto Multi Functional Group Type (Organic Chain Type) Organic Solvent, Water System ++ ++ ++ + + + ++
KBM-802 Mercapto – Organic Solvent, Water System ++ ++ ++ + + + ++
KBM-803 Mercapto – Organic Solvent, Water System ++ ++ ++ + + + ++
X-12-1307 Mercapto Short Chain Silane Organic Solvent, Water System ++ ++ ++ + + + ++
X-12-1267B – Modified Type Organic Solvent + + + + + + + + + + + + + +
X-12-1267B-ES – Modified Type Organic Solvent + + + + + + + + + + + + + +
X-12-967C Acid Anhydride Protected Functional Group Type Organic Solvent, Water System + + + ++ ++ + + + + + ++
X-12-1287A – Modified Type Organic Solvent + + + + + + ++ ++ + + + + + ++
X-88-475 Amino – Organic Solvent, Water System + + ++ ++ ++ + ++ ++ + + + ++ ++ +
X-12-1333A Acrylic Polymerizable Type Organic Solvent, Water System + + + + + + ++ +
