Shin-Etsu Silicone Selection Guide

KBM-4803

　　　
Required Performance AdhesionWater ResistanceAlkali Resistance
Features and Applications Filler Surface TreatmentPrimerCoating Additive
  • Silane coupling agent with epoxy group and longer spacer chain than conventional product (KBM-403)
  • Owing to the long spacer chain, improvement of hydrophobicity and flexibility can be expected.
  • Improvement of adhesiveness, high filler filling, flexibility of cured material, alkali resistance, water resistance can be expected.

Product Information

Features and Resulting Properties

Improved hydrophobicity (lipophilicity) ⇒
Improved resin compatibility
Filler high filling
Improved alkali resistance
Improved flexibility ⇒
Maximize freedom of functional groups (improved reactivity)
Improved adhesiveness　mproved flexibility of cured material

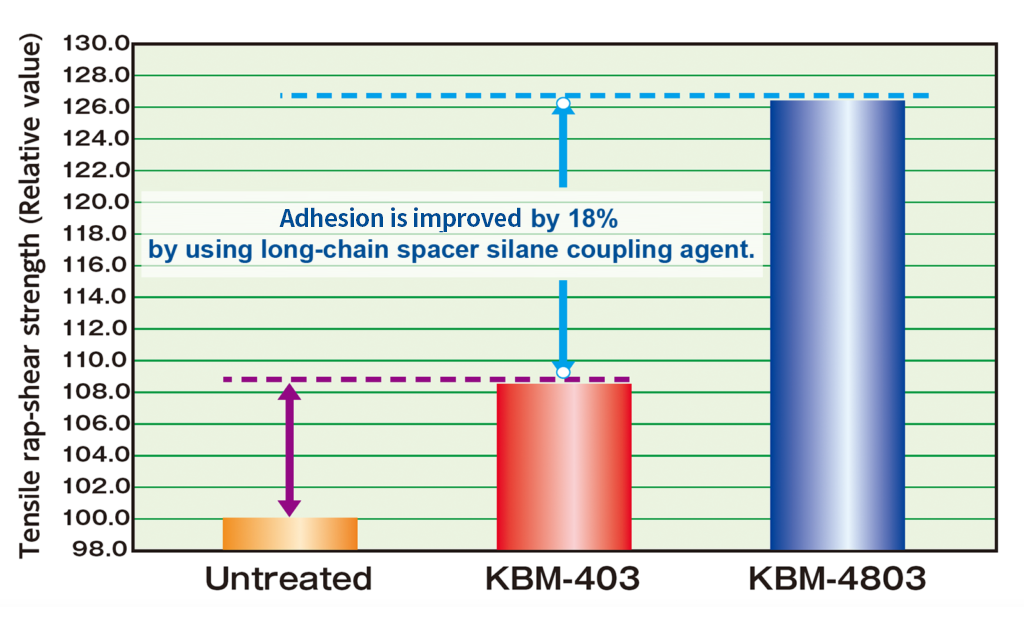

Adhesion Test of Glass/Epoxy Resin Interface

Test Method
    1. ① A 1% aqueous solution is applied to a glass substrate.
    2. ② A cured material (EPIKOTE 828 [epoxy resin made by Mitsubishi Chemical Corporation]/triethylenetetramine) is prepared and adhesive strength is tested.

*Adhesive strength is calculated against a standard of 100 (untreated glass).

KBM-403:
3-Glycidoxypropyl trimethoxysilane

Measurement of Cured Material

KBM-4803 Resin KBM-403 Resin
Pencil hardness 3H 5H
Cure shrinkage No Yes

(Not specified values)

* Measured using hydrolyzed condensate of epoxysilane
Cured film thickness: 5 μm Substrate: PET (0.2 mm thick)COSMOSHINE A4300

Silica Treatment

Composition
Silane treated silica
10 parts
Multifunctional epoxy compound
90 parts
Sample Adhesion (Pa-s)
KBM-4803 120
KBM-403 260

(Not specified values)

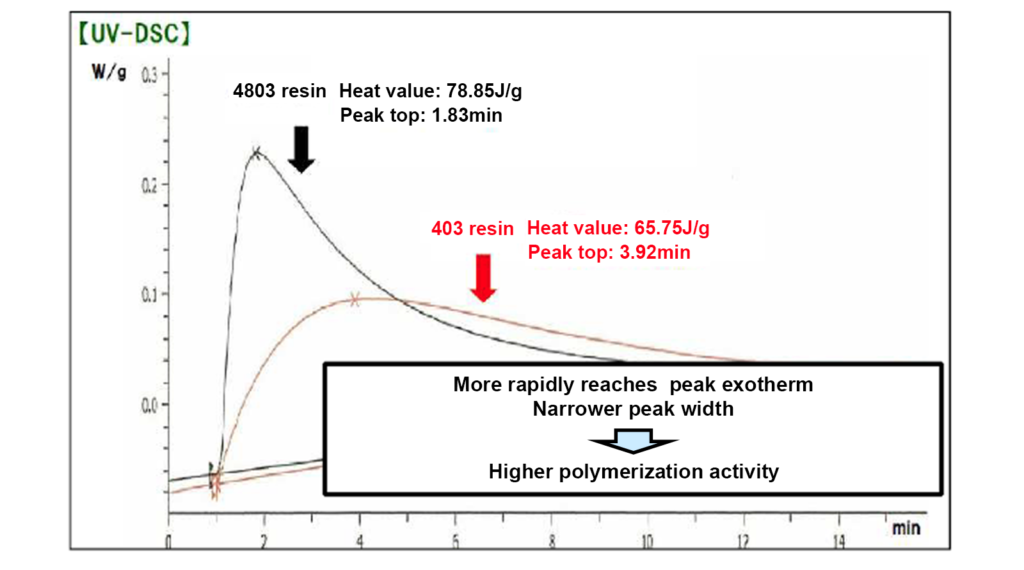

Polymerization Activity Comparison by UV-DSC

Composition: Resin/cationic polymerization catalyst = 100/0.5 (by weight)

Applicable solvent type Organic solvent type, Water type
Applicable resin Epoxy, Acrylic, Polycarbonate, Urethane, ABS, PBT, PET, Urethane rubber, Epichlorohydrin rubber, Diallyl phthalate, Nylon, Nitrile rubber, Phenol, Unsaturated polyester, Furan, Polyimide, Polyethylene, Polyvinyl chloride, Polysulfide, Polystyrene, Polypropylene, Melamine
Solvent type Solvent-free
Usage Main component, Additive
Organic functional groups Epoxy group
Chemical name 8-Glycidoxyoctyltrimethoxysilane
Flash Point (°C) 180
Minimum covering area m2/g 254
Molecular weight 306.5
Specific gravity 1.01
Refractive index 1.438
Boiling point (°C) 160℃/0.004kPa
Number of alkoxy groups 3
Methoxy/ethoxy group Methoxy group
Water solubility Slightly soluble
UN Number N/A
Packaging 1kg, 16kg

(Not specified values)
