X-12-1333A

Required Performance	Heat ResistanceAdhesion
Features and Applications	Surface ModificationFiller Surface TreatmentCoating Agent

Silane coupling agent with cyclization polymerization properties
Superior thermal degradability and adhesiveness compared to KBM-503 and KBM-5103
Silane coupling agent with acrylic groups as organic functional groups
This product is used for processing silica.

Product Information

Applicable solvent type	Organic solvent type, Water type
Applicable resin	Acrylic, Polycarbonate, Urethane, ABS, EPDM, EPM, Diallyl phthalate, Unsaturated polyester, Polyethylene, Polypropylene
Solvent type	Solvent-free
Usage	Additive, Primer, Filler treatment
Organic functional groups	Acrylic group

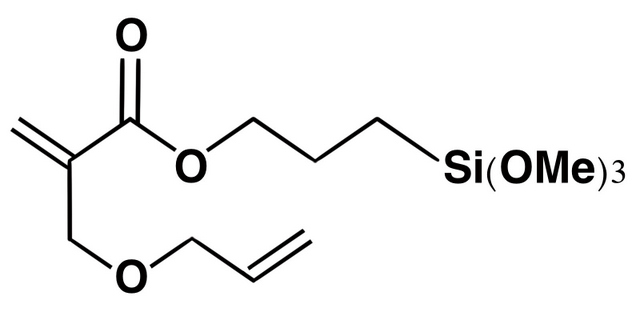

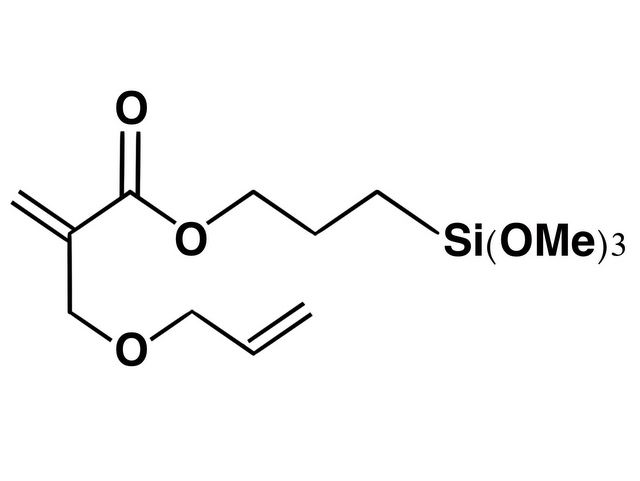

Chemical name	2-(Allyloxymethyl)acrylic acid (trimethoxysilyl) propyl
CAS No.	2649015-00-7
Flash Point (°C)	182
Minimum covering area m²/g	256
SP value	8.84
Molecular weight	304.4
Specific gravity	1.06
Refractive index	1.444
Boiling point (°C)	150℃／0.80kPa
Number of alkoxy groups	3
Methoxy/ethoxy group	Methoxy group
Optimum pH	3-4
Water solubility	〇
UN Number	UN3082
Packaging	1kg

(Not specified values)

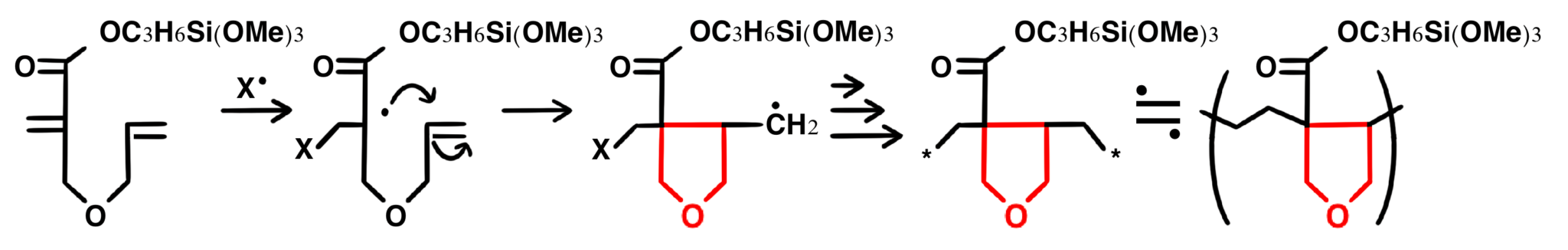

Forms THF Ring by Cyclization Polymerization

Heat Resistance Test Data

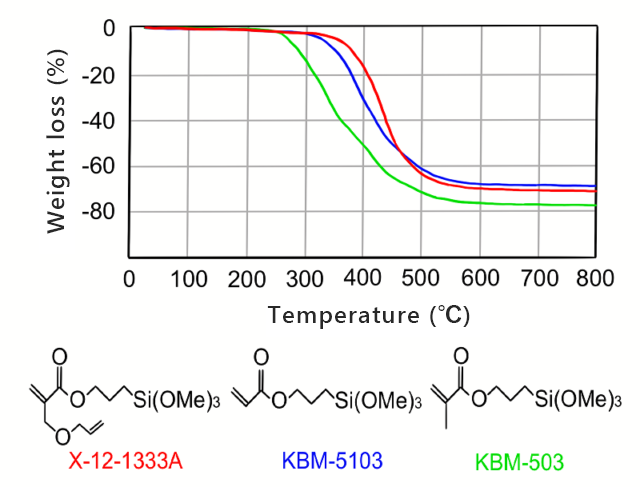

Thermal Weight Loss of Homopolymer

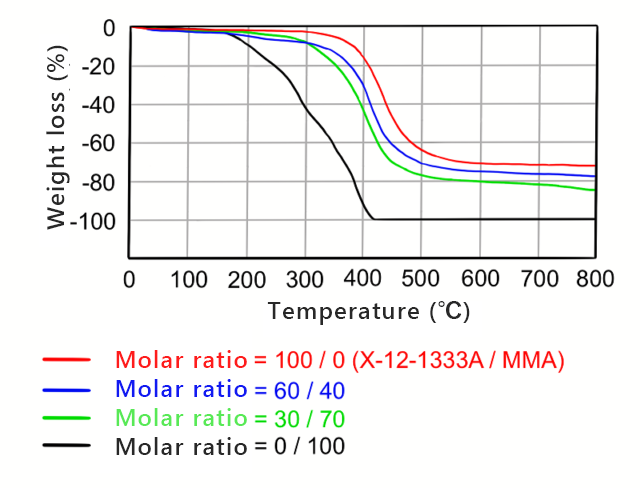

Thermal Weight Loss of MMA Copolymer

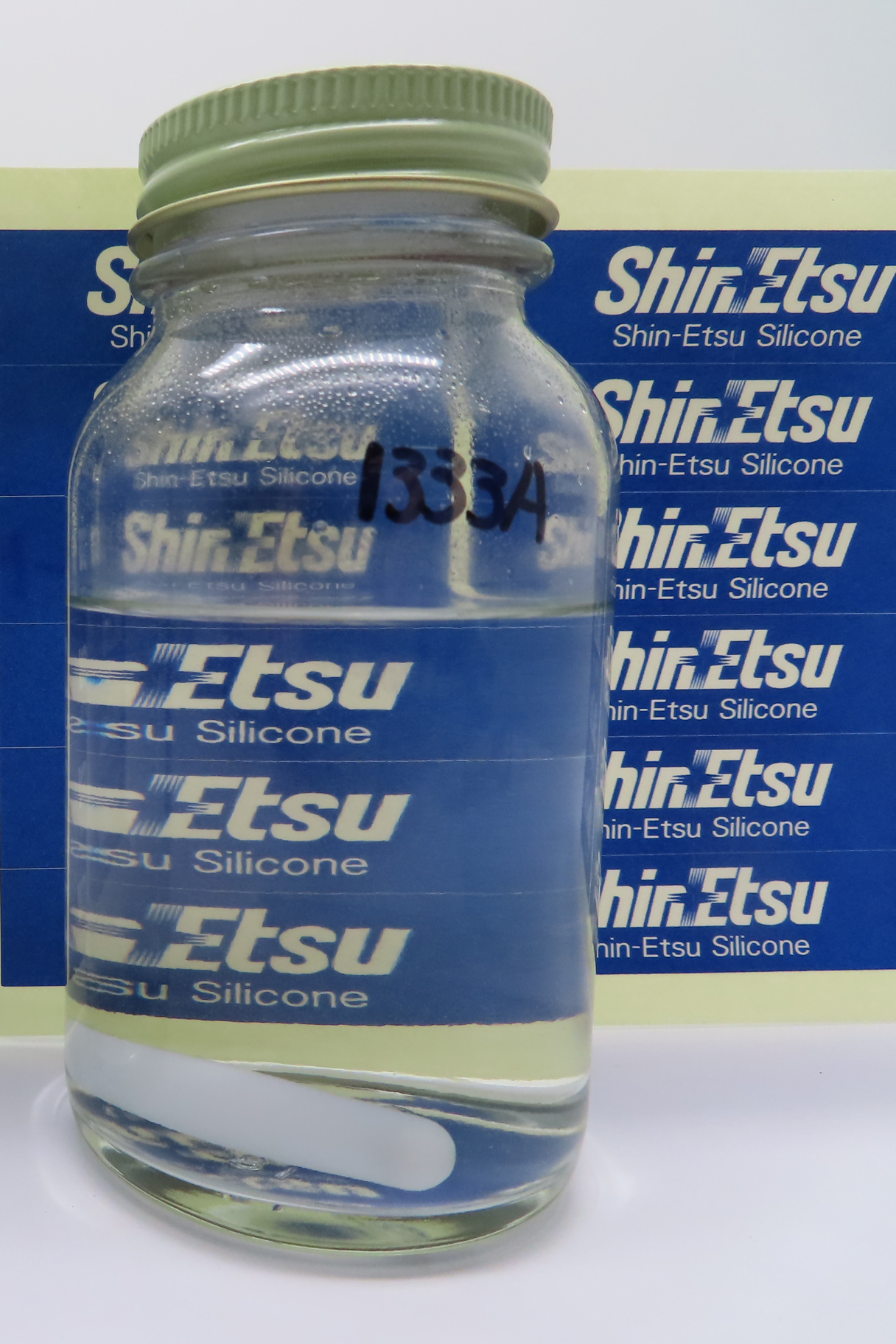

Aqueous Solution Stability

It is stable in aqueous solution and maintains its transparency.

X-12-1333A	KBM-503

Appearance of 0.5% silane solution

Formulation

Silane 0.5wt%

pH 3.6 Acetic acid solution 99.5wt%.

Application to Primers

【Primer】 Add 1 wt% silane to methanol:water = 50:50 (stirred for 1 hour) 【Top paint】 Resin = LUXYDIR 17-813 (urethane acrylate manufactured by DIC Corporation) Photoinitiator = Omnirad184 (manufactured by IGM Resins) Resin : Photoinitiator = 100 : 2.4 【Application】 ①Flow coat primer on glass substrate, 80°C x 5min. drying
②Top coating is applied with a bar coater (20 μm film thickness), dried at 80°C x 10 min. and UV irradiated (600 mJ).

Item / Silane Coupling Agents	Blank	X-12-1333A	KBM-503	KBM-5103
Appearance	Colorless transparent	Colorless transparent	Colorless transparent	Colorless transparent
Pencil hardness 750g load	5H	6H	5H	5H
Adhesion (Cross cut adhesion test)	25/25	25/25	25/25	25/25
After immersion in hot water Adhesion (Cross cut adhesion test) 80℃×2h	0/25	25/25	0/25	0/25

(Not specified values)

Evaluation as an Adhesion Aid (UV-curable Silicone)

【Combination】 UV-curable silicone polymer 100 parts Adhesion aid silane coupling agent 3 parts Photoinitiator 1 part 【Curing conditions】 Under N2 atmosphere UV-LED irradiation（365nm, 100mW/cm², 80sec）

Item / Silane Coupling Agents	Blank	X-12-1333A	KBM-5103
Hardness Durometer A *	45	43	42
Hardness Durometer A * (MPa) *	5.2	4.9	4.1
Elongation at break % *	110	100	90
Tensile lap-shear strength (glass)　(MPa) t=230 μm	1.7	4.4	3.9

*2mm sheet physical properties

(Not specified values)
