Shin-Etsu Silicone Selection Guide

KBM-6803

　　　
Required Performance Water ResistanceAlkali ResistanceAdhesion
Features and Applications Filler DispersionCoating Additive
  • Silane coupling agent with ethylenediamine structure and longer spacer chain than conventional product (KBM-603)
  • Owing to the long spacer chain, improvement of hydrophobicity and flexibility can be expected.
  • Improvement of adhesiveness, alkali resistance and water resistance can be expected.

Product Information

Features and Resulting Properties

Improved hydrophobicity (lipophilicity) ⇒
Improved resin compatibility
Filler high filling
Improved alkali resistance
Improved flexibility⇒
Maximize freedom of functional groups (improved reactivity)
Improved adhesion　Improved flexibility of cured material

■Evaluation as an adhesion aid (moisture-curing silicone sealant composition)

[Formulation]
Silicone polymer:
100 parts,
Filler:
10 parts,
Cross-linking agent:
4 parts,
Adhesion aid:
1 part,
Catalyst:
0.3 parts
[Curing conditions]
23°C, 50%RH, 1 week

Adhesion Test Results

Initial After water resistance test
Substrate KBM-603 KBM-6803 KBM-603 KBM-6803
Cu/Cu + + ± ±
Al/Al + + + +
SUS/SUS + + – ±
PC/PC + ± – –
AC/AC – ± – ±
PBT/PBT ± + – +
ABS/ABS – + – ±
Noril/Noril + + + +

Water resistance test conditions: 40°C x 1 week

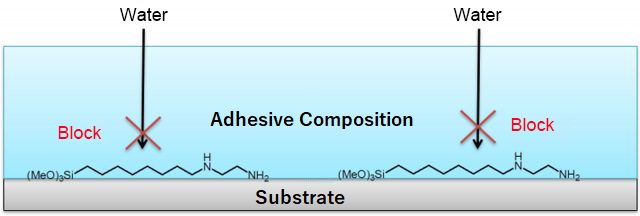

In the case of KBM-603, water is drawn into the interface, and adhesion is reduced after the water resistance test.
In contrast, KBM-6803 has a hydrophobic long-chain group, which prevents water from being drawn into the interface.
Thus, it is thought that water resistance will improve.

Applicable solvent type Organic solvent type, Water type
Applicable resin Epoxy, Acrylic, Polycarbonate, Urethane, ABS, EPDM, EPM, PBT, PET, Urethane rubber, Nylon, Nitrile rubber, Neoprene rubber, Phenol, Furan, Polyimide, Polyethylene, Polyvinyl chloride, Polysulfide, Polystyrene, Polypropylene, Melamine
Solvent type Solvent-free
Usage Main component, Additive
Organic functional groups Amino group
Chemical name N-2-(aminoethyl)-8-aminooctyltrimethoxysilane
Flash Point (°C) 164
Minimum covering area m2/g 267
Molecular weight 292.5
Specific gravity 0.97
Refractive index 1.447
Boiling point (°C) 180℃/0.9kPa
Number of alkoxy groups 3
Methoxy/ethoxy group Methoxy group
Water solubility Slightly soluble
UN Number N/A
Packaging 1kg, 16kg

(Not specified values)
