X-12-1126

Required Performance	Adhesion
Features and Applications	Antimicrobial TypePrimerVOC-freeFiller Surface TreatmentSurface Modification

Aqueous silane coupling agent with quaternary ammonium salts
Saves on hydrolysis process as it has already been hydrolyzed
Nonflammable, reduced VOC generation
Sustainable antimicrobial properties can be expected by fixing on the surface of fibers and inorganic materials.

Product Information

VOC Free Aqueous Silane Coupling Agent

Normally, when a silane coupling agent is hydrolyzed, a large amount of alcohol is generated and released from the system.
Example: When hydrolyzing 100kg of KBE-903 => 62kg of ethanol is generated, which requires environmental measures.

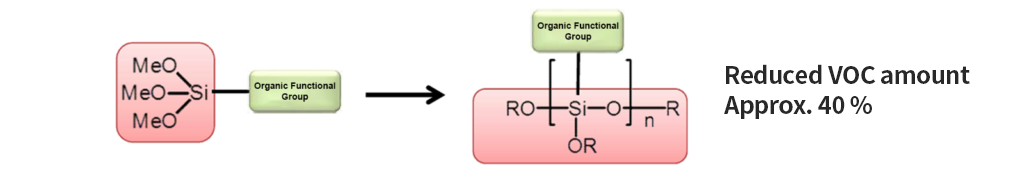

[VOC Reduction Method 1] Partial Hydrolytic Condensation

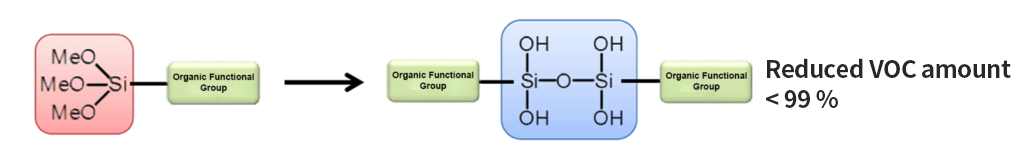

[VOC Reduction Method 2] Complete Water System

Characteristics of Water-Based Silane Coupling Agents

Nonflammable
No VOC emission
Short hydrolysis process
Mixing with water-based paints

Expected Applications

Primers
Surface treatment agent
Binder

Evaluation of Hydrophilicity on Glass Substrate

Treatment agent	X-12-1126 (Quaternary ammonium salt type)	X-12-641* (Polyether silane)	NON

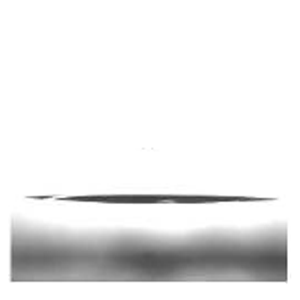

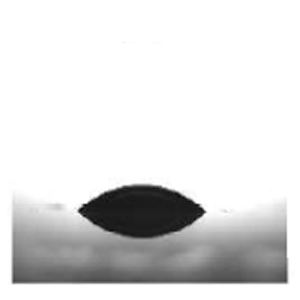

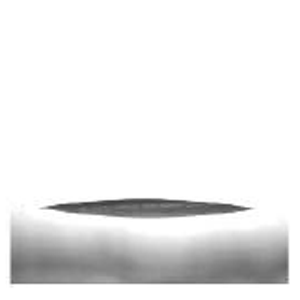

Water droplet shape
Water contact angle	4°	8°	35°

(Not specified values)

5% aqueous solution applied to a glass substrate, dried at 100°C for 10 minutes to form a film.
*Polyether-type silane: (MeO)3SiC3H6(OC2H4)nOMe

Anti-static Property Evaluation

Treatment agent	X-12-1126	X-12-641	KBM-9418-40	NON
Surface resistance value in Ω/square	1×10⁸	5×10⁹	9×10¹⁰	>10¹³

(Not specified values)

A 30% aqueous solution (undiluted solution for X-12-1126) was applied to a glass substrate, dried at 100℃ for 1hr, and then measured the surface resistance (applied voltage: 500V)

Antimicrobial Property Data of each Product

Bacteria	24 hours later bacteria reduction rate %
Bacteria	KBM-9418-40	X-12-1126	X-12-1139
A	>99.9	>99.9	>99.9
B	>99.9	>99.9	>99.9
C	>99.9	>99.9	>99.9
D	>99.9	95.4	>99.9

(Not specified values)
Test method: Test bacterial solution and each sample were mixed, and the bacterial count was measured after 24 hours to obtain the bacterial reduction rate.

Applicable solvent type	Organic solvent type,Water type
Solvent type	Solvent-free
Usage	Additive
Organic functional groups	Quaternary ammonium salt
Water solubility	Soluble
UN Number	N/A
Packaging	1kg, 16kg

(Not specified values)

Product Inquiry

X-12-1126

Inquiry Form

Contact by Telephone or Fax

Related Material

Product Brochure "Silane Coupling Agents" [1.5MB]

Related Product List

Product Name	Organic Fucntional Group	Product Category	Applicable Solvent System	For Polyethylene	For Polypropylene	For Polystyrene	For Acrylic	For PVC	For Polycarbonate	For Nylon	For Urethane	For PBT・PET	For ABS	For Melamine	For Phenol	For Epoxy	For Polyimide
X-12-1126	Quaternary Ammonium Salt	Antibacterial Silane	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
KBM-9418-40	Quaternary Ammonium Salt	Antibacterial Silane	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
POLON-V8	Quaternary Ammonium Salt	Antibacterial Silane	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
X-12-1139	Quaternary Ammonium Salt	Antibacterial Silane	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
X-12-1048	Acrylic	Multi Functional Group Type (Organic Chain Type)	Organic Solvent, Water System	+	+	+	+		+		+		++			+
X-12-1050	Acrylic	Multi Functional Group Type (Organic Chain Type)	Organic Solvent, Water System	+	+	+	+		+		+		++			+
KBM-5103	Acrylic	–	Organic Solvent, Water System	+	+	+	+		+		+		++			+
KBP-64	Amino	VOC Free Type	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBP-90	Amino	VOC Free Type	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBE-9103P	Amino	Protected Functional Group Type	Organic Solvent	+	+	++	++	++	+	++	+	+	+	+	++	++	+
X-12-1172ES	Amino	Protected Functional Group Type	Organic Solvent	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBE-903	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
X-12-972F	Amino	Multi Functional Group Type (Organic Chain Type)	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-6803	Amino	Long Chain Spacer Type	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-573	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-575	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-602	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-603	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-903	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-6103	Amino	Short Chain Silane	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
X-12-5263HP	Amino	Multi Hydrolytic Group Type	Organic Solvent, Water System	+	+	++	++	++	+	++	+	+	+	+	++	++	+
KBM-3086	–	Multi Hydrolytic Group Type	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBM-9659	Isocyanurate	Multi Hydrolytic Group Type	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBE-9007N	Isocyanate	–	Organic Solvent						+	+	++	+	+	+	+	+	++
X-12-1159L	Isocyanate	Multi Functional Group Type (Organic Chain Type)	Organic Solvent						+	+	++	+	+	+	+	+	++
X-12-1195	–	Blocked Type	Organic Solvent, Water System						+	++	++	+	+	+	+	+	++
X-12-1293	–	Blocked Type	Organic Solvent, Water System						+	++	++	+	+	+	+	+	++
X-12-1308ES	–	Blocked Type	Organic Solvent, Water System						+	++	++	+	+	+	+	+	++
KBE-585A	Ureido	–	Organic Solvent, Water System							++	++				+	+	+
KBM-585	Ureido	–	Organic Solvent, Water System							++	++				+	+	+
KBE-402	Epoxy	–	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBE-403	Epoxy	–	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBM-303	Epoxy	–	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBM-402	Epoxy	–	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBM-403	Epoxy	–	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
X-12-981S	Epoxy	Multi Functional Group Type (Organic Chain Type)	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
X-12-984S	Epoxy	Multi Functional Group Type (Organic Chain Type)	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
KBM-4803	Epoxy	Long Chain Spacer Type	Organic Solvent, Water System	+	+	+	+	+	+	+	+	+	+	+	+	+	+
X-12-1135	Carboxy	VOC Free Type	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
X-12-1116	–	Chelate Functional Type	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
X-12-989MS	–	Chelate Functional Type	Organic Solvent, Water System				+	+	+	+	+	+	+	+	+	+	+
KBM-1403	Styryl	Polymerizable Type	Organic Solvent			+	+
KBE-1003	Vinyl	–	Organic Solvent, Water System	++	++
X-12-1290	Vinyl	Polymerizable Type	Organic Solvent, Water System	++	++
KBM-1003	Vinyl	–	Organic Solvent, Water System	++	++
KBM-1083	Vinyl	Long Chain Spacer Type	Organic Solvent, Water System	++	++
X-12-1214A	–	Benzotriazole Type	Organic Solvent, Water System				+	+	+	++	++	+	+	+	+	+	++
KBE-502	Methacrylic	–	Organic Solvent, Water System	++	++	++	+		+		+		++
KBE-503	Methacrylic	–	Organic Solvent, Water System	++	++	++	+		+		+		++
KBM-502	Methacrylic	–	Organic Solvent, Water System	++	++	++	+		+		+		++
KBM-503	Methacrylic	–	Organic Solvent, Water System	++	++	++	+		+		+		++
KBM-5803	Methacrylic	Long Chain Spacer Type	Organic Solvent, Water System	++	++	++	+		+		+		++
X-12-1303MS	Methacrylic	Short Chain Silane	Organic Solvent, Water System	++	++	++	+		+		+		++
X-12-1056ES	Mercapto	Protected Functional Group Type	Organic Solvent	++	++	++	+		+		+		++
X-12-1154	Mercapto	Multi Functional Group Type (Organic Chain Type)	Organic Solvent, Water System	++	++	++	+		+		+		++
KBM-802	Mercapto	–	Organic Solvent, Water System	++	++	++	+		+		+		++
KBM-803	Mercapto	–	Organic Solvent, Water System	++	++	++	+		+		+		++
X-12-1307	Mercapto	Short Chain Silane	Organic Solvent, Water System	++	++	++	+		+		+		++
X-12-1267B	–	Modified Type	Organic Solvent	+	+	+	+	+	+	+	+	+	+	+	+	+	+
X-12-1267B-ES	–	Modified Type	Organic Solvent	+	+	+	+	+	+	+	+	+	+	+	+	+	+
X-12-967C	Acid Anhydride	Protected Functional Group Type	Organic Solvent, Water System				+	+	+	++	++	+	+	+	+	+	++
X-12-1287A	–	Modified Type	Organic Solvent	+	+	+	+	+	+	++	++	+	+	+	+	+	++
X-88-475	Amino	–	Organic Solvent, Water System	+	+	++	++	++	+	++	++	+	+	+	++	++	+
X-12-1333A	Acrylic	Polymerizable Type	Organic Solvent, Water System	+	+	+	+		+		+		++			+
