Silicone Materials for LEDs

About Shin-Etsu LED Silicone MaterialsApplication examplesProduct lineupSilicone materials for LED-Display & Lighting ModulesReference material

Silicones for LED applications are driving the evolution of LEDs.

LEDs (light-emitting diodes) consume less energy, are long-lasting, and are eco-friendly. As they have become higher in brightness, they have come to be used in a wide variety of applications. LEDs used for illumination and TV backlights in particular must provide long-lasting reliability, which makes silicone a vital material for the manufacture of such LEDs.

Silicone is used as an encapsulant and die-bonding adhesive, and manufacturers are working toward using it as a reflector material. Silicone is driving the evolution of LEDs.

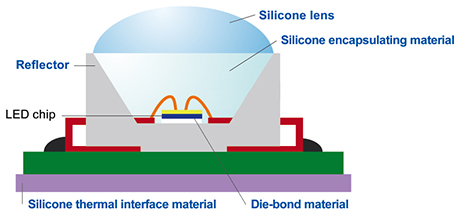

Structure of a LED and the areas where the silicone material is used.

Structure of a LED and the areas where the silicone material is used.

Application examples

  • LED signs & displays
  • Automotive
  • Mobile phone
  • PCs
  • LCD TVs
  • Street light
  • Illumination & lighting
  • LED bulbs
  • Signals
  • Others

Product lineup

Cure system Product name Brief description Category
Two-
component,
addition
ASP-2010-A/B High hardness, crack resistant Phenyl resin
KER-6110-A/B For compression molding
ASP-1050P-A/B Crack resistant Phenyl rubber
ASP-1120-A/B High refractive index, low stress, rubber type
SCR-1012A/B-R Low gas permeability Modified silicone
SCR-1016A/B Low gas permeability
SCR-1018A(S2)/B Low gas permeability, thixotropic
FER-7061-A/B Low refractive index Fluoro rubber
FER-7110-A/B Low refractive index
KER-2500-A/B High heat resistant Methyl rubber
KER-2500N-A/B For compression molding
KER-2600-A/B Mid hardness, for lighting
KER-2910-A/B Ultra heat resistant, for lighting
KER-6000-A/B Low hardness, high refractive index Phenyl rubber
KER-6150-A/B Mid refractive index
KER-6200-A/B High refractive index, gel Phenyl gel
One-
component,
addition
KER-6075-F Thixotropic Phenyl rubber
KER-6020-F For gold wire protection, thixotropic
KER-6230-F For photocoupler, thixotropic Phenyl gel
Cure system Product name Brief description Category
One-
component,
addition
KER-3000-M2 Transparent Insulator, transparent
KER-3200-T7 Thermal interface material Insulator, low thermal resistance
X-32-2551 Transparent Insulator, transparent
SMP-2840 Electrically conductive Polyimide silicone
Cure system Product name Brief description Category
One-
component,
addition
KER-2000DAM Dams for high density mounting Methyl rubber
KER-2020-DAM Dams for high density mounting,
highly thixotropic
Cure system Product name Brief description Category
One-
component,
addition
KCR-H2800 Heat resistant Organically modified silicone
KCR-4000W Low viscosity, Standard product
Cure system Product name Brief description
UV KER-4130M-UV Compatible with UV-LEDs, filling material
KER-4130H-UV Compatible with UV-LEDs, damming material
KER-4000-UV For lens molding
SMP-7004 Compatible with UV-LEDs, polyimide silicone

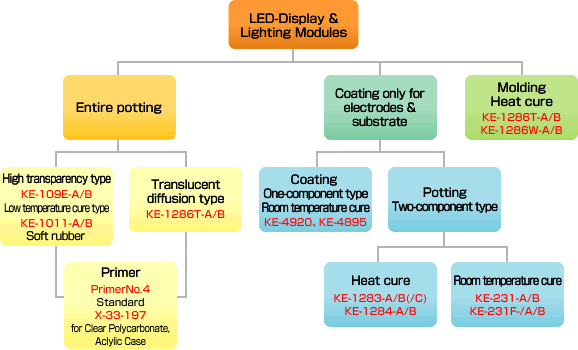

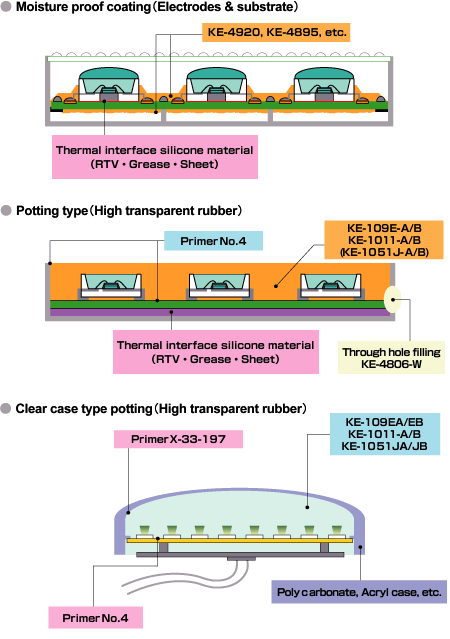

Silicone materials for LED-Display & Lighting Modules

Example
