TC-200FORS-2-40
The TC-FORS-2-40 series is a line of low-hardness thermal interface pads that can stand up to exposure to oils and acidic and alkaline fluids with no significant loss of thermal conductivity.
Parameter  Product name |
Test method | TC-200FORS-2-40 |
|---|---|---|
Color |
- | Reddish brown |
Structure |
- | Single layer sheet Double-sided adhesive |
Thickness mm |
- | 2.0 |
Density at 23°C g/cm3 |
JIS K 6249 | 3.2 |
Hardness Asker C |
JIS K 6249 | 40 |
Continuous use temperature °C |
- | 180 |
Dielectric breakdown strength (in oil) 2 mm kV |
JIS K 6249 | 28 |
Thermal conductivity W/m·K |
ISO 22007-2 | 1.9 |
Thermal resistance 50°C / 100 psi cm2·K/W |
ASTM D5470 | 3.5 |
Flame retardance UL94 |
- | V-0 equivalent |
*Other thickness, please talk to our sales department

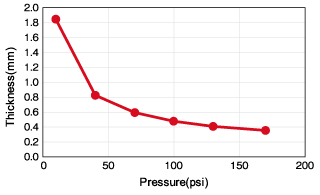

(Not specified values)Pressure and Thickness

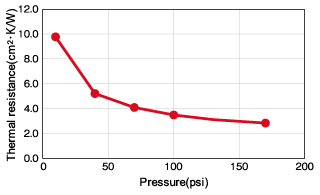

Pressure and Thermal Resistivity
ATF Compatibility Test Result
Physical properties were measured after immersing samples in automatic transmission fluid for a specified period at 150°C.
Immersion time h |
0 | 250 | 500 | 750 | 1,000 |
| Appearance |  |
 |
 |
 |
 |
Density at 23°C g/cm3 |
3.18 | 3.25 | 3.27 | 3.26 | 3.26 |
Hardness Asker C |
38 | 42 | 51 | 55 | 59 |
Thickness mm |
2.00 | 1.99 | 2.01 | 2.02 | 2.01 |
Dielectric breakdown strength (in oil) kV |
28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
Thermal conductivity W/m·K |
1.94 | 1.96 | 2.03 | 1.92 | 1.95 |
*These products are not suitable for use with all solvents.
Be sure to test to check compatibility with particular oils and fluids before use.
Apparance of typical silicone thermal conductive soft pad after 500 hours aging in 150°C ATF.
