CP series
The CP series can be molded with artificial leathers with silicone properties.
This product offers new feels and characteristics that are not found in conventional artificial leathers.

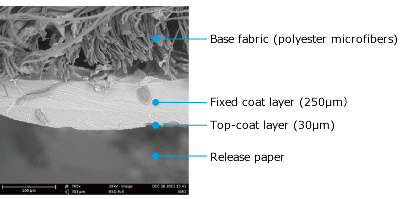

After applying the top-coat layer to the release paper, apply the adhesive coat layer and laminate the base fabric.
Parameter Product name | Top-coat layer | Fixed coat layer | |||
---|---|---|---|---|---|
CP-001 A/B | CP-002 A/B | CP-005 A/B | CP-006 A/B | ||
Appearance |
Transparent liquid | Transparent liquid | Black liquid | White liquid | |
Viscosity Pa·s |
A:34/B:30 | A:260/B:413 | A:189/B:349 | A:194/B:365 | |
Curability |
T10 | 8 | 224 | 156 | 174 |
T90 | 45 | 278 | 220 | 228 | |
After curing Condition: 150°C × 5 min |
|||||
Hardness Shore A |
83.1 | 51 | 51 | 51 | |
Tensile strength MPa |
6.8 | 9.0 | 7.8 | 8.4 | |
Elongation at break % |
60 | 530 | 430 | 510 | |
Tear strength N/mm |
15.5*1 | 34*2 | 36*2 | 36*2 |
*1: Angle type *2: Crescent type
5,000 abrasion tests with sandpaper do not damage the surface of the article.
As a result of the dyeing fastness of molded articles test, we have obtained a grade 4 or higher rating.
