Super high-thermal stable one-component condensation cure RTV silicone rubber

KE-3410/KE-3411

These products are super thermal stable low-viscosity adhesive. You can choose the right product from four types of viscosity.

Features

  • Thermal stability (can be available over 180°C)
  • By-product gas: acetone
  • From low viscosity type to paste type
    *Not available for electric insulation use

Applications

  • Adhesion of application used under high heat condition

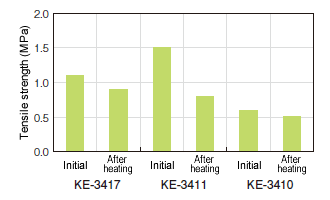

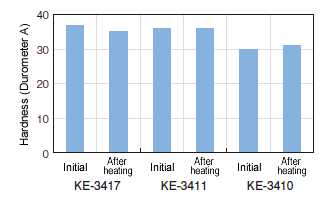

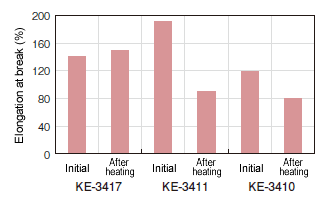

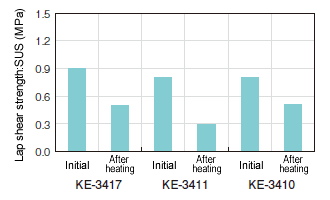

Test Result (after heating: 250°C × 168 h)

Test ResultTest ResultTest ResultTest Result

General Properties

Parameter Product name KE-3418 KE-3417 KE-3411 KE-3410

Appearance

 Black Black Black Black

Viscosity

Pa·s		 Paste 45 30 10

Tack-free time

min		 5 15 40 20

Hardness  Durometer A

 45 36 36 30

Elongation at break

%		 200 140 190 120

Tensile strength

MPa		 2.0 1.1 1.5 0.6

Lap shear strength

MPa		 Al 1.4 0.9 — —
SUS — — 0.8 0.8
(Not specified values)

Curing condition: 23 ± 2°C @ 50 ± 5% RH × 7 days
Shear test specimen curing conditions:
23 ± 2°C @ 50 ± 5% RH × 7 days (KE-3417)
23 ± 2°C @ 50 ±5 % RH × 14 days (KE-3410/KE-3411)
