SCP Series
Product name  Parameter |
Recommended applications | Features | |
|---|---|---|---|
SCP-101 |
UV irradiation + room temperature UV irradiation + low temperature heating |

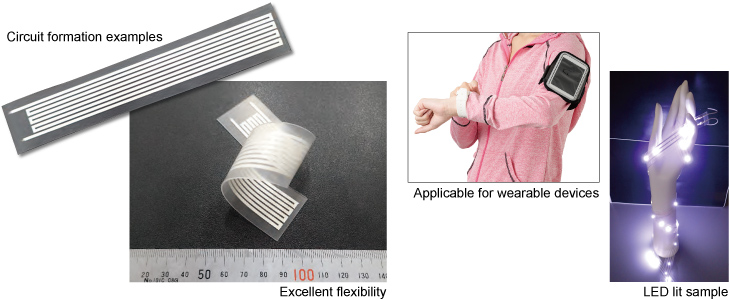

Circuit formation on silicone rubber substrates by UV irradiation |
Excellent adhesiveness with addition cure type silicone rubbers |
SCP-201 |
Heat cure | Circuit formation on various substrates by heat cure |
Excellent adhesiveness with addition cure type silicone rubbers, glass and PET etc. |
X-32-3814-3 |
Heat cure | Conductive adhesive | Excellent adhesiveness with metals (e.g.) Al and Cu |
| Product name | SCP-101 | SCP-201 | X-32-3814-3 | |
|---|---|---|---|---|
 |
Curing conditions |
UV cure | Heat cure | Heat cure |
Appearance |
Grayish white | Grayish white | Grayish white | |
Viscosity Pa·s |
60 | 45 | 40 | |
Storage temperature |
Refrigerated storage |
Refrigerated storage |
Refrigerated storage |
|
 |
Hardness* Durometer A |
10* | 87 | 85 |
Tensile strength MPa |
0.3* | 3.2 | 2.0 | |
Elongation at break % |
65* | 50 | 10 | |
Cure conditions
SCP-101: Metal halide lamp 6,000 mJ (100 mW × 60 s) + 23°C × 12 h
SCP-201: 120°C × 1 h
X-32-3814-3: 120°C × 1 h
* Sheets were molded under 120°C × 1 h for physical properties measurement
| Product name Parameter |
Curing conditions | Volume resistivity Ω·cm |
|---|---|---|
SCP-101 |
100 mW × 60 s + 23°C × 12 h | <1 × 10-3 |
| 100 mW × 60 s + 60°C × 1 h | <1 × 10-3 | |
SCP-201 |
120°C × 1 h | 4.1 × 10-4 |
X-32-3814-3 |
120°C × 1 h | 3.2 × 10-4 |
Product name: SCP-101
| Volume resistivity Ω·cm | ||
|---|---|---|
| Conditions | High temperature (120°C) |
High temperature and high humidity (85°C/85%RH) |
Initial |
4 × 10-4 | 4 × 10-4 |
500 h |
1 × 10-4 | 8 × 10-5 |
1,000 h |
2 × 10-4 | 5 × 10-5 |
* Test samples prepared under the conditions of 6,000 mJ + 23°C × 12 h by metal halide lamp
