SDP Series

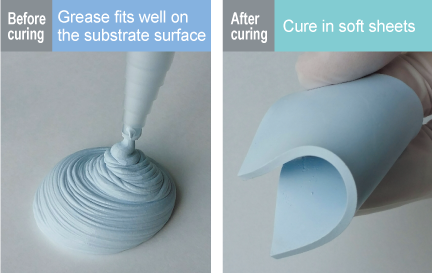

The SDP Series is a thermal interface material that cures at room temperature by mixing liquid A and B. We have a line-up of products with thermal conductivity 9.5 W/m·K.
Parameter  Product name |
SDP-5040-A/B | SDP-6560-A/B | SDP-8070-A/B | SDP-9550-A/B |
|---|---|---|---|---|
Thermal conductivity W/m·K |
5.1 | 6.5 | 8.0 | 9.5 |
Standard curing condition |
25°C×24 h | |||
Before curing |
||||
Appearance |
A: Grayish white B: Pink Grease |
A: Grayish white B: Pink Grease |
A: Grayish white B: Pink Grease |
A: Gray B: Pale pink Grease |
Viscosity at 25°C Pa·s |
A: 181 / B: 162 | A: 282 / B: 288 | A: 196 / B: 203 | A: 197 / B: 225 |
Mixed viscosity at 25°C Pa·s |
169 | 284 | 201 | 214 |
Blend ratio |
100 : 100 | |||
Specific gravity at 25°C |
A: 3.25 / B: 3.26 | A/B: 3.20 | A/B: 3.14 | A/B: 3.05 |
After curing |
||||
Hardness Shore OO |
42 | 61 | 69 | 54 |
Dielectric breakdown strength kV/mm |
21 | 20 | 16 | 14 |
