X-32-4049

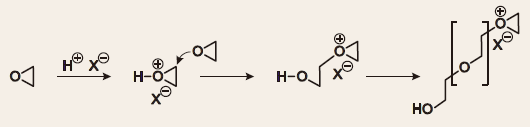

X-32-4049 is a cationically curable silicone adhesive. Unlike the addition-curing type, there is no curing inhibition caused by the silver filler.
Parameter  Product name |
X-32-4049 |
|---|---|
Appearance |
Gray |
Viscosity at 23°C Pa·s |
25 |
Non volatile content wt% |
99.2 |
Solvent |
Non solvent |
Strage condition |
Refrigerated (0 to 10°C) |
Curing condition |
150°C×1 h |
After curing |
|
Density at 23°C g/cm3 |
5.2 |
Glass transition point °C |
-45 |
Hardness Type D |
82 |
Elastic modulus at 25°C MPa |
17.5 |
Coefficient of linear expansion ppm |
65 |
Conductivity Ω·cm |
7.0×10-5 |
Thermal conductivity W/m·K |
8.2 |
Die shear* MPa |
33.7 to 17.2 (25°C to 150°C) |
*Bonded to 26×30 mil chip
(Not specified values)
