Self-adhesive LIMS FDA and Japanese Food Sanitation Act compliant

KE-2097-A/B Series

KE-2097-A/B series is suitable for various silicone rubber components in the food industry because it complies with FDA and Japanese Food Sanitation Act. It is a self-adhesive LIMS (liquid silicone rubber injection moulding system) that allows for integrated molding with resin and improves productivity.

Features

It's self-adhesive type, so you don't need any primers or glues.
It is suitable for food contact applications.
The process can be automated by injection molding.
Hardness (durometer A) 30 to 60 is available.
It can save energy without the need for post cure.

Applications

Packing for food storage containers such as lunch boxes and water bottles.
Rubber parts used in food plants, etc.

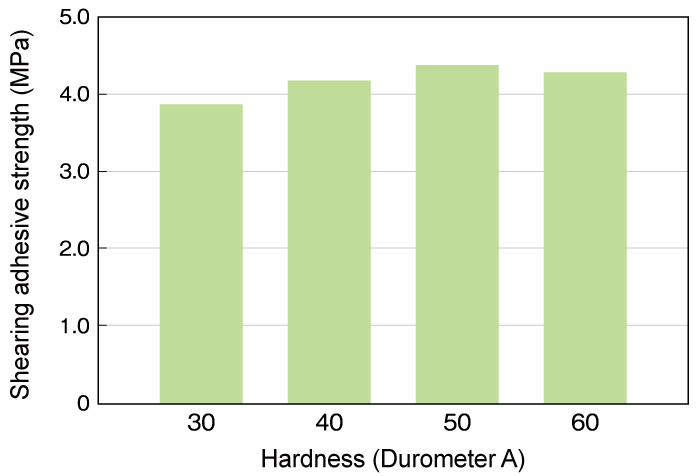

Hardnesss and shearing adhesive strength (PBT)

General properties

Parameter Product name		KE-2097-30 -A/B	KE-2097-40 -A/B	KE-2097-50 -A/B	KE-2097-60 -A/B
Appearance		Translucent	Translucent	Translucent	Translucent
Shear viscosity (A/B) 0.9s-1 Pa·s		620/670	820/860	500/500	600/600
Curing speed at 130°C (MDR) s	T10	20	21	20	25
Curing speed at 130°C (MDR) s	T90	55	44	47	59
Curing condition	Primary cure	150°C×5 min	150°C×5 min	150°C×5 min	150°C×5 min
Curing condition	Post cure	No need	No need	No need	No need
Density at 23°C g/cm³		1.13	1.14	1.13	1.14
Hardness Durometer A		30	38	47	60
Elongation at break %		820	720	700	380
Tensile strength MPa		9.8	8.9	9.7	9.7
Tear strength Crescent piece kN/m		13	25	34	45
Cohesive failure Adhesion to PBT %		100	100	100	100

(Not specified values)
